Same model may have multiple batches, images only for reference.

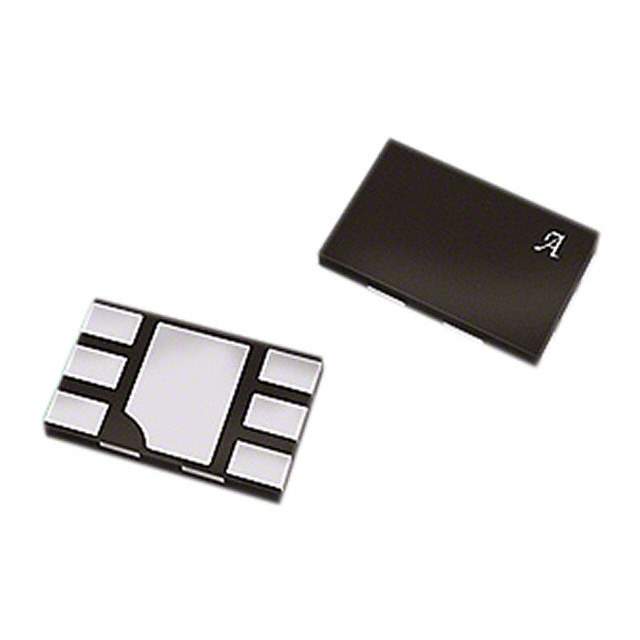

MGA-685T6-TR1G Real Image
Same model may have multiple batches, images only for reference.

MGA-685T6-TR1G

Part No MGA-685T6-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC RF AMP LNA GAAS MMIC 6-UTSLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Frequency 100MHz to 1.5GHz
P1dB 17.3dBm
Gain 20.5dB
Noise Figure 1.5dB
RF Type General Purpose
Supply Voltage - Operating 3V
Operating Supply Current 10mA
Test Frequency 500MHz
Case / Package 6-UTSLP (2x1.3)
Win Source Part Number 023214-MGA-685T6-TR1G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name MGA-685T6
Introduction Date April 01, 2004
ECCN 5A991.g
Country of Origin China, Malaysia
Estimated EOL Date Obsolete
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MGA-685T6-TR1G CAD Model

Description

This product has sufficient supply and demand.

  • Frequency Range: 100MHz to 1.5GHz
  • Gain: 20.5dB
  • Noise Figure: 1.5dB
  • P1dB: 17.3dBm
  • Category: RF/IF and RFID
  • Case/Package: 6-UTSLP (2x1.3)
  • Operating Supply Current: 10mA
  • Supply Voltage: 3V
  • Usage: Common-used part
  • Quantity per package: 3k pcs
