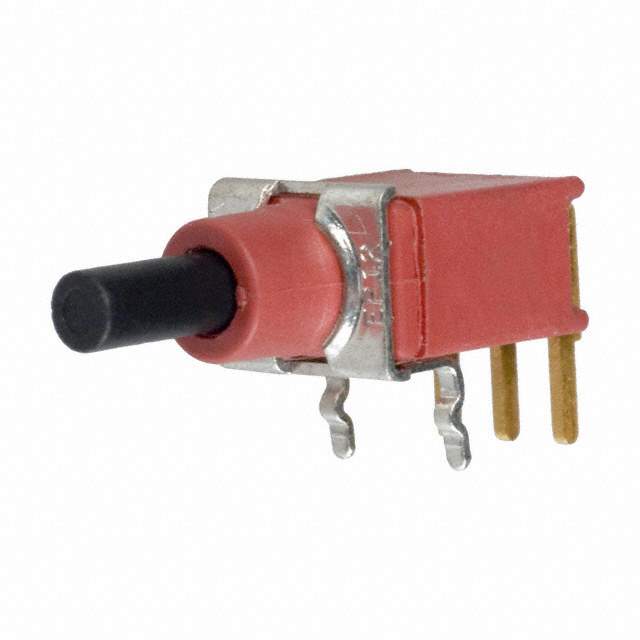

EP12SD1ABE Real Image
Same model may have multiple batches, images only for reference.

EP12SD1ABE

Part No EP12SD1ABE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V / Pushbutton Switch SPDT Standard Through Hole, Right Angle
Datasheet
EP12SD1ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series EP
Package Bulk
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 30,000 Cycles
Base Product Number EP12SD1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names *EP12SD1ABE,Q1262811,CKN4008,2266-EP12SD1ABE
Standard Package 1
Win Source Part Number 1186931-EP12SD1ABE
Ultra Librarian 3D Model Ultra Librarian EP12SD1ABE CAD Model

Description

The EP12SD1ABE pushbutton switch from C&K is a highly reliable component that is ideal for use in a variety of electronic devices.

  • Mounting: Through hole, right angle
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round, plunger
  • Voltage Rating: 20 V AC/DC
  • Seal: Epoxy sealed
  • Electrical Life: 30,000 cycles
  • Operating Temperature: -30°C to 85°C
  • Protection: Dust protected and waterproof
  • Ingress Protection: IP57
