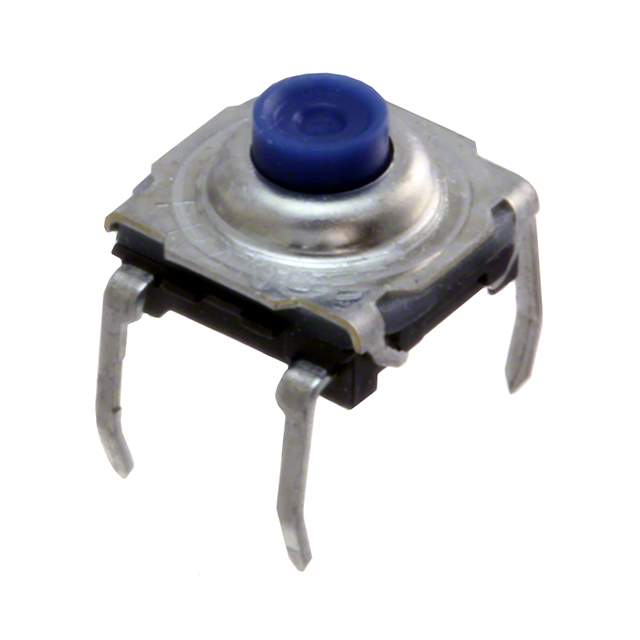

KSA0M411 LFTR Real Image
Same model may have multiple batches, images only for reference.

KSA0M411 LFTR

Part No KSA0M411 LFTR
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
KSA0M411 LFTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer C&K
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Through Hole
Actuator Height off PCB, Vertical 4.70mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 7.40mm x 7.40mm
Illumination Non-Illuminated
Operating Force 300gf
Ingress Protection IP60 - Dust Tight
Temperature Range - Operating -40°C ~ 90°C
Switch Travel 0.60mm
Mechanical Life 100,000 Cycles
Base Product Number KSA0M4
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number Y33R41115FP LFT,CKN10731,KSA0M411LFTR,KSA0M411 LFTR-ND,Y33R41115FPLFT,*KSA0M411 LFTR,Y33R41115FP LFT-ND
Standard Package 5,000
Win Source Part Number 1323798-KSA0M411 LFTR
Ultra Librarian 3D Model Ultra Librarian KSA0M411 LFTR CAD Model

Description

The C&K tactile switch is a SPST-NO circuit with an off-mom switch function and a standard actuator type.

  • Switch Travel: 0.60mm
  • Operating Force: 300gf
  • Mechanical Life: 100,000 cycles
  • Ingress Protection: IP60 - Dust Tight
  • Mounting Type: Through-Hole
  • Actuator Height off PCB, Vertical: 4.70mm
  • Temperature Range: -40°C to 90°C
