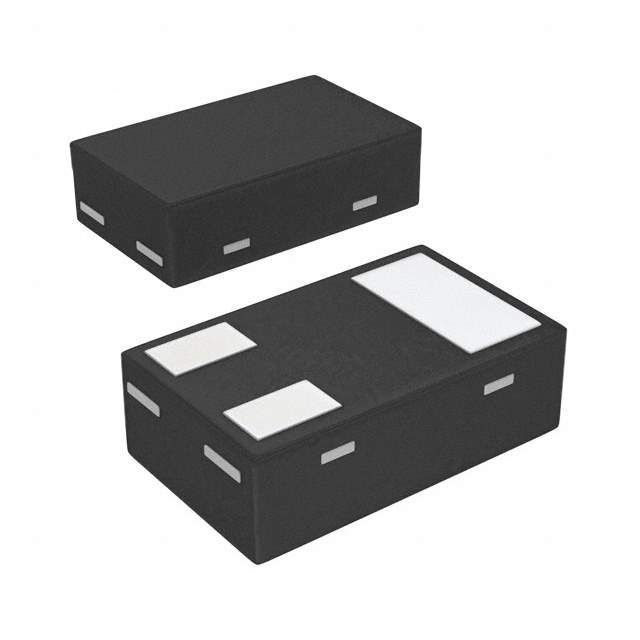

CEDM8001VL TR Real Image
Same model may have multiple batches, images only for reference.

CEDM8001VL TR

Part No CEDM8001VL TR
Manufacturer Central Semiconductor Corp
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 0.1A SOT883
Datasheet
CEDM8001VL TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4V
Gate-Source Threshold Voltage 1.1V @ 250μA
Max Gate Charge 0.66nC @ 4.5V
Max Input Capacitance 45pF @ 3V
Maximum Gate-Source Voltage 10V
Power Dissipation (Max) 100mW (Ta)
Maximum Rds On at Id,Vgs 8 Ohm @ 10mA, 4V
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-883VL
Dimension SC-101, SOT-883
Win Source Part Number 105268-CEDM8001VL TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CEDM8001VL TR CAD Model

Description

CEDM8001VL TR

The CEDM8001VL TR is a high-performance electronic component ideal for applications requiring precise current measurement. This component, from a reputable manufacturer, offers excellent linearity and temperature stability, making it a reliable choice for engineers and designers.

  • Applications: Current sensing in power management systems, Battery monitoring, Industrial automation controls, and Renewable energy systems.
  • Features and Benefits: High accuracy and linearity, Excellent temperature stability, Compact and lightweight design, and RoHS compliant.

    • The CEDM8001VL TR stands out for its compact size and robust performance, ensuring seamless integration into complex electronic systems.
