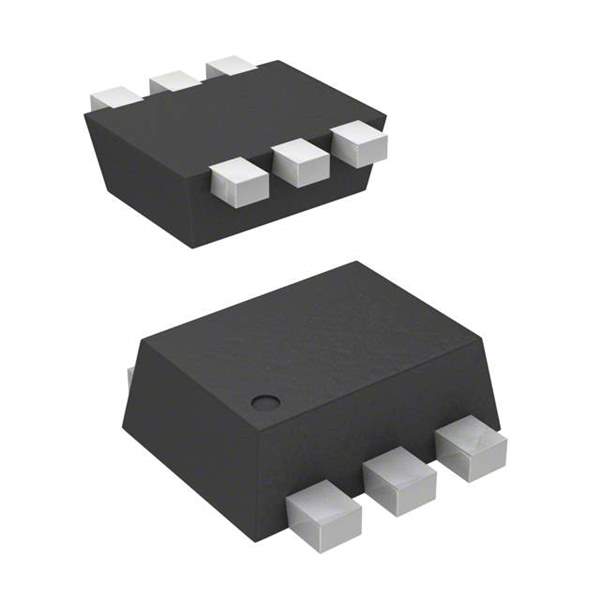

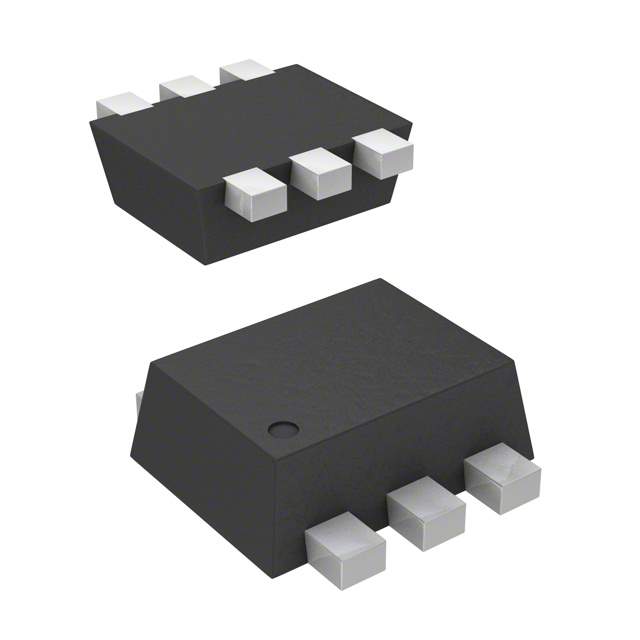

The CMLDM7002AG is a surface mount N-Channel enhancement mode MOSFET from Central Semiconductor Corp. It is designed for low voltage, high-speed switching applications. This MOSFET is commonly used in portable equipment, power management circuitry, and DC-DC converters due to its small size and efficient performance.

Applications

• DC-DC converters: Used as switching elements in DC-DC converters for efficient voltage regulation.
• Load switches: Employed as load switches in portable devices to control power distribution.
• Power management: Integrated into power management circuits for battery charging and discharging.
• Logic-level conversion: Used for converting logic levels in digital circuits.
• Small signal amplification: Utilized as a small signal amplifier in low-noise applications.

Features

• N-Channel Enhancement Mode: Operates as an N-channel MOSFET, requiring a positive gate voltage to turn on.
• Low On-Resistance (RDS(on)): Features a low on-resistance to minimize power loss during conduction.
• Low Gate Threshold Voltage (VGS(th)): Requires a low gate voltage to switch on, making it compatible with low-voltage logic circuits.
• Surface Mount Package: Comes in a small surface mount package for easy PCB assembly.
• Fast Switching Speed: Offers fast switching speeds for high-frequency applications.

Benefits

• High Efficiency: Low on-resistance minimizes power dissipation, improving overall efficiency.
• Space-Saving: Small surface mount package saves valuable board space in portable devices.
• Logic-Level Compatible: Low gate threshold voltage allows direct interfacing with low-voltage logic circuits.
• Reliable Performance: Central Semiconductor Corp is known for manufacturing reliable semiconductor devices.
• Simple Circuit Integration: Easy to integrate into various electronic circuits due to its standard pinout and characteristics.

Additional Details

The CMLDM7002AG MOSFET requires proper gate drive circuitry to ensure efficient switching. It's important to observe the maximum voltage and current ratings to prevent damage to the device. Consider using appropriate heat sinking techniques if the device operates at high power levels. Refer to the manufacturer's datasheet for detailed specifications, including maximum drain current, gate-source voltage, and thermal resistance.
