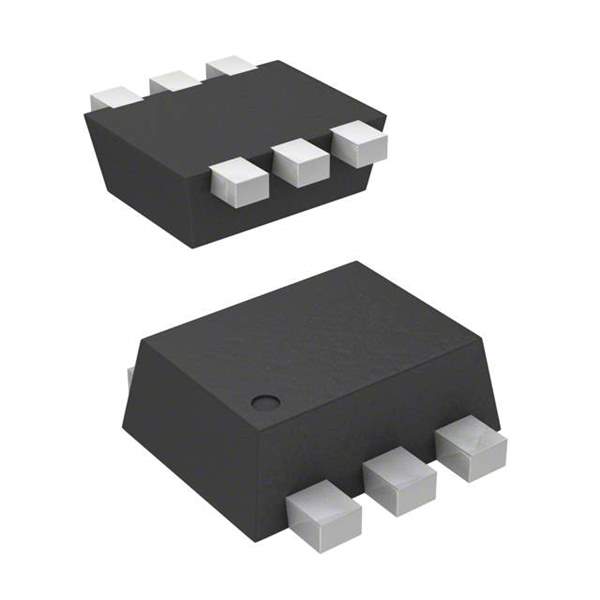

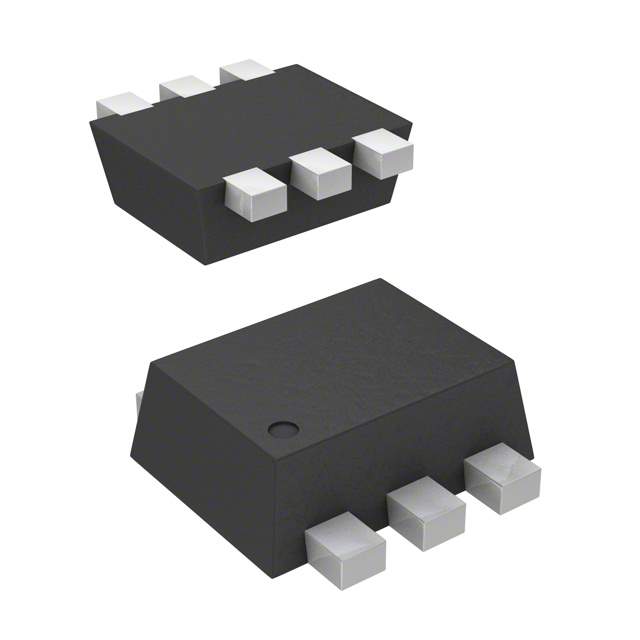

CMLT3946E Real Image
Same model may have multiple batches, images only for reference.

CMLT3946E

Part No CMLT3946E
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Arrays
Description TRANS ARRAY 60V 0.2A SOT563
Datasheet
CMLT3946E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Transistor Polarity NPN, PNP
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 100mV @ 5mA, 50mA / 200mV @ 5mA, 50mA
Typical Gain (hFE) (Min) 30 @ 100mA, 1V / 150 @ 10mA, 1V
Maximum Power Dissipation 150mW
Frequency - Transition 300MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-563
Win Source Part Number 94683-CMLT3946E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMLT3946E CAD Model

Description

Product Overview

The CMLT3946E is designed for dual NPN and PNP applications, combining the virtues of both into a single efficient package. This makes it an optimal choice for projects that require intricate transistor interactions with minimal space requirements.

Features and Benefits

  • Dual NPN and PNP transistors for comprehensive circuit solutions
  • High-speed switching response
  • Encased in a space-saving package
  • Enhanced durability and reliability

Applications

  • Combinational logic circuits
  • Compact power amplifiers
  • RF applications
  • Integrated circuit development

Additional Details

Utilizing the CMLT3946E can greatly simplify complex designs, reducing the number of components needed while maintaining efficiency and reliability.
