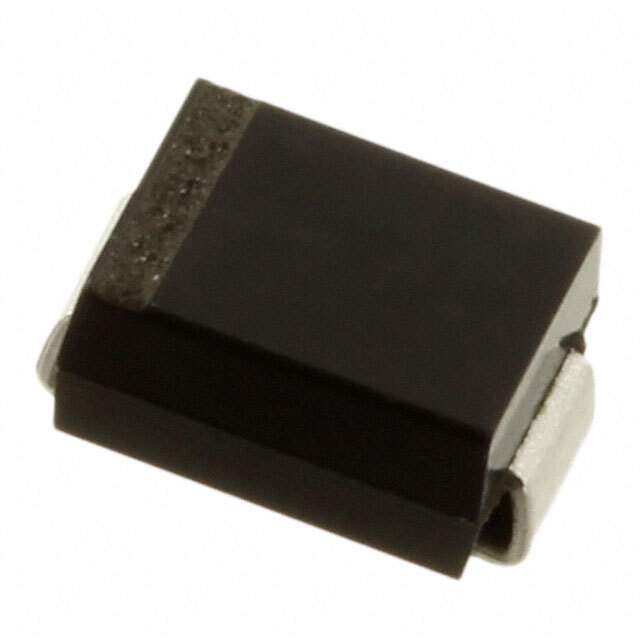

CMSH2-20L TR13 Real Image
Same model may have multiple batches, images only for reference.

CMSH2-20L TR13

Part No CMSH2-20L TR13
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 2A SMB
Datasheet
CMSH2-20L TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 400mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 20V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SMB
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1029730-CMSH2-20L TR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMSH2-20L TR13 CAD Model

Description

The CMSH2-20L TR13 is a surface mount Schottky diode manufactured by Central Semiconductor Corp.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 2A
  • Forward Voltage: 400mV @ 2A
  • Reverse Leakage Current: 500μA @ 20V
  • Capacitance: 150pF @ 4V, 1MHz
  • Packaging: Reel
  • Case: SMB
  • Application: Discrete Semiconductor Products, Power Management
