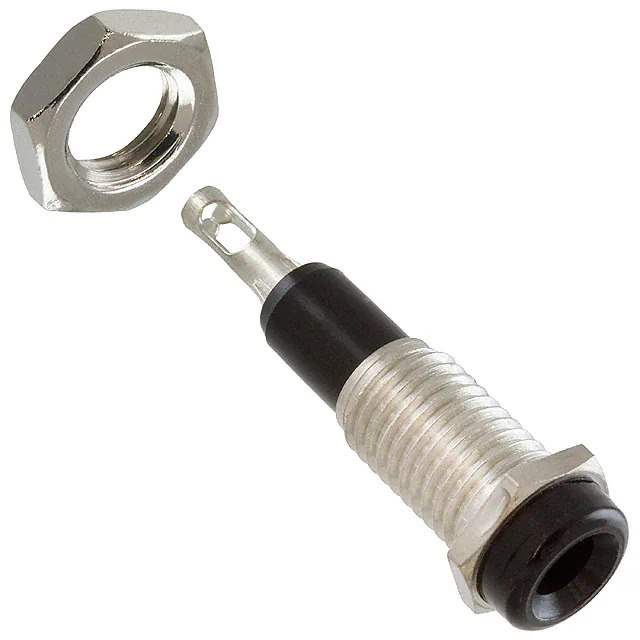

105-0253-001 Real Image
Same model may have multiple batches, images only for reference.

105-0253-001

Part No 105-0253-001
Manufacturer Cinch Connectivity Solutions
Catalog Banana and Tip Connectors
Description CONN TIP JACK SLDR EYELET BLACK / Tip Jack Connector Standard Tip Solder Eyelet(s) Black
Datasheet
105-0253-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Banana and Tip Connectors - Jacks, Plugs
Mfr Cinch Connectivity Solutions
Package Bulk
Product Status Active
Type Tip Jack
Gender Female
Plug/Mating Plug Diameter Standard Tip
Mounting Type Panel Mount
Termination Solder Eyelet(s)
Insulation Mating End Insulated, Metal Clad
Color Black
Contact Finish Silver
Contact Material Phosphor Bronze
Body Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 105-0253
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 905077-105-0253-001
Ultra Librarian 3D Model Ultra Librarian 105-0253-001 CAD Model

Description

The Cinch Connectivity Solutions 905077-105-0253-001 is a female tip jack connector designed for various electronic applications.

  • Color: Black
  • Body Material: Polyamide (PA66), Nylon 6/6
  • Termination: Solder Eyelet
  • Contact Finish: Silver
  • Package: Bulk
  • Standard Package Quantity: 100 pieces
  • Product Status: Active
