Same model may have multiple batches, images only for reference.

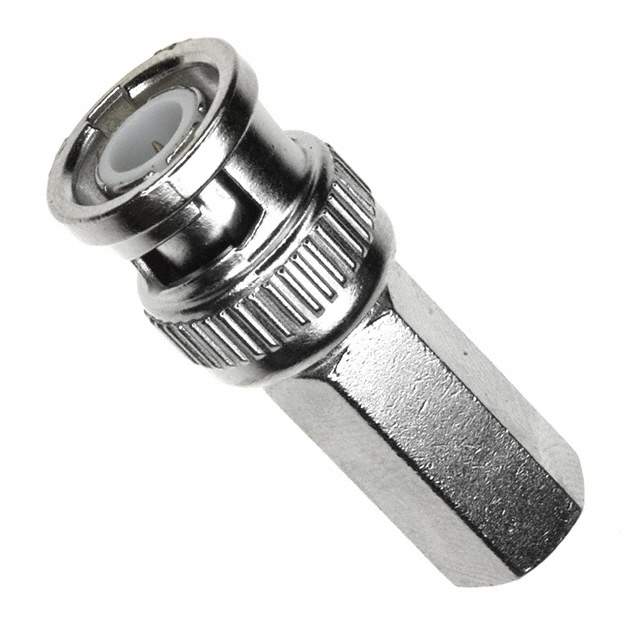

CPFIUG882 Real Image
Same model may have multiple batches, images only for reference.

CPFIUG882

Part No CPFIUG882
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN BNC PLUG STR 50 OHM PUSH
Datasheet
CPFIUG882 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions AIM-Cambridge
Packaging Bulk
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Push On
Shield Termination Twist On
Impedance 50 Ohm
Mounting Free Hanging (In-Line)
Cable Group RG-59, 62
Fastening Type Bayonet Lock
Frequency - Max 4GHz
Features Field Installable
Housing Color Silver
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -55°C ~ 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Win Source Part Number 762048-CPFIUG882
Popularity Medium
Supply and Demand Status Limited
Family Name BNC
Introduction Date April 15, 2002
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian CPFIUG882 CAD Model

Description

The Cinch Connectivity Solutions AIM-Cambridge CPFIUG882 is a BNC plug male pin connector manufactured by Cinch Connectivity Solutions.

  • Fastening Type: Bayonet Lock
  • Voltage Rating: 500 V
  • Frequency Range: Up to 4 GHz
  • Installable: Field Installable
  • Impedance: 50 Ohm
