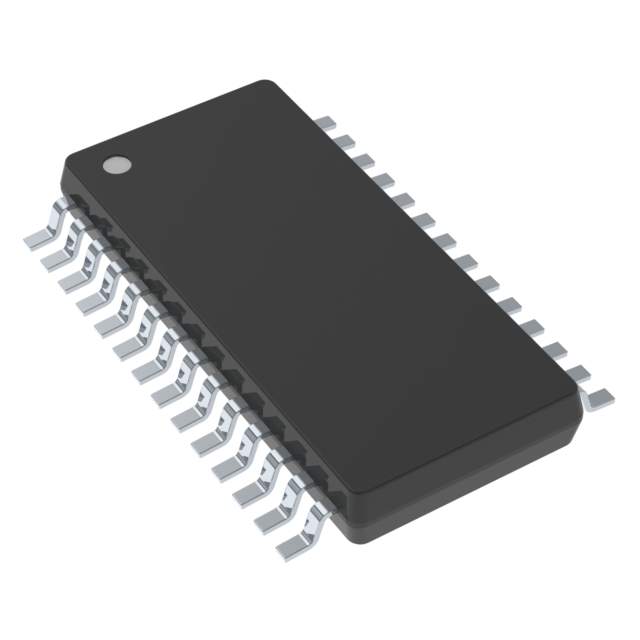

CS4272-DZZR

Part No CS4272-DZZR
Manufacturer Cirrus Logic Inc.
Catalog Interface - CODECs
Description IC CODEC AUD 24BIT 114DB 28TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Cirrus Logic Inc.
Packaging Reel - TR
Status Active
Type Stereo Audio
Data Interface PCM
Resolution (Bits) 24 b
Number of ADCs / DACs 2 / 2
Sigma Delta Yes
Dynamic Range, ADCs / DACs (db) Typ 114 / 114
Analog Supply Voltage 4.75 V to 5.25 V
Digital Supply Voltage 3.1 V to 5.25 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 28-TSSOP
Win Source Part Number 124810-CS4272-DZZR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CS4272-DZZR CAD Model

Description

CS4272-DZZR

The CS4272-DZZR stands out for its robust design and excellent audio performance. Tailored for high-end audio applications, this stereo audio CODEC delivers remarkably clear sound with minimal distortion.

  • Applications/Projects:
  • Broadcast Audio Equipment
  • Digital Audio Workstations
  • Recording Studio Gear
  • AV Receivers
  • Digital Mixers

Features and Benefits:

  • Offers superior dynamic range and low total harmonic distortion (THD) for pristine audio clarity.
  • Ability to handle multiple sampling rates with precision.
  • Integrated low jitter design enhances audio fidelity.
  • Comprehensive set of control features via serial control port for customization.

Renowned for its adaptability and efficiency, the CS4272-DZZR provides a competitive edge in the development of professional audio equipment.
