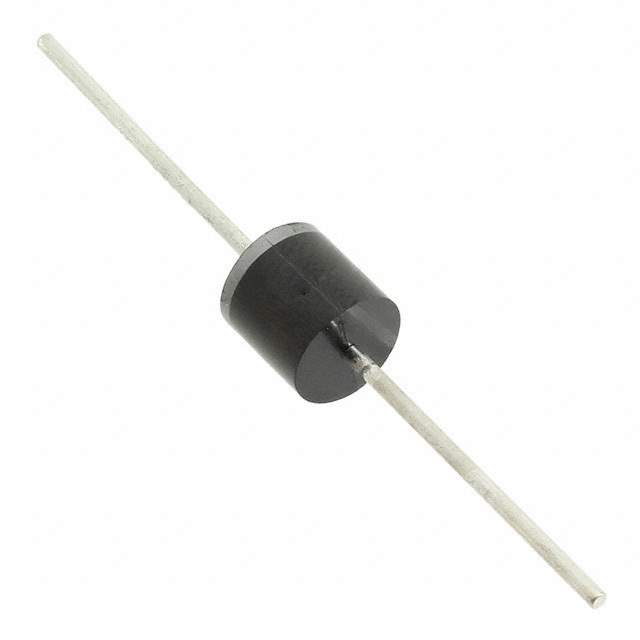

5KP8.5A-G Real Image
Same model may have multiple batches, images only for reference.

5KP8.5A-G

Part No 5KP8.5A-G
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 8.5VWM 14.4VC R6
Datasheet
5KP8.5A-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Tape in Box
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8.5V
Minimum Breakdown Voltage 9.44V
Maximum Clamping Voltage 14.4V
Current - Peak Pulse (10/1000μs) 347.22A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package R6, Axial
Manufacturer Package R-6
Win Source Part Number 764296-5KP8.5A-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian 5KP8.5A-G CAD Model

Description

The Comchip Technology 764296-5KP8.5A-G Zener diode is a unidirectional channel diode that provides excellent circuit protection.

  • Voltage Reverse Standoff: 8.5V
  • Minimum Breakdown Voltage: 9.44V
  • Peak Pulse Current: 347.22A (10/1000μs)
  • Peak Pulse Power: 5000W (5kW)
  • Package: Axial
  • Mounting Style: Through-hole
  • Operating Temperature: -55°C to 150°C (TJ)
  • Applications: General
  • Supply and Demand Status: Balanced
  • Quantity per package: 250
