Same model may have multiple batches, images only for reference.

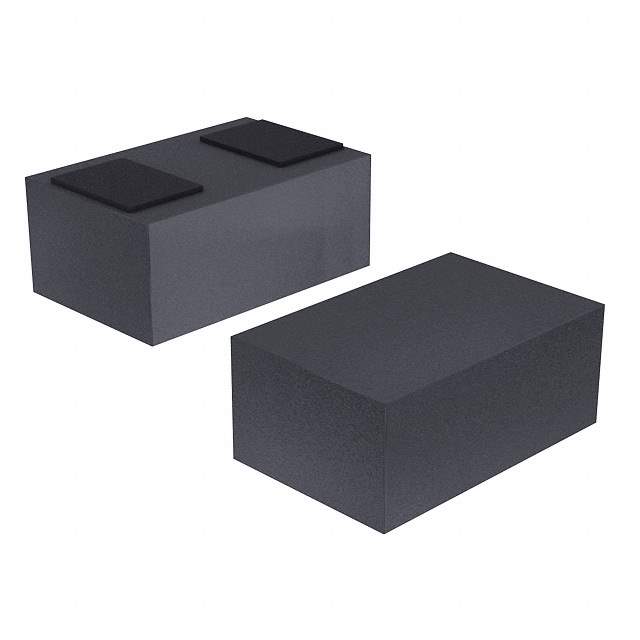

CPDER5V0-HF Real Image
Same model may have multiple batches, images only for reference.

CPDER5V0-HF

Part No CPDER5V0-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC 0503
Datasheet
CPDER5V0-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.1V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 75W
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0503/SOD-723F
Win Source Part Number 1030038-CPDER5V0-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDER5V0-HF CAD Model

Description

The Comchip Technology 1030038-CPDER5V0-HF is a Zener type diode that can be used for general-purpose applications.

  • STAND-OFF Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 5.1V
  • Maximum Clamping Voltage: 15V
  • Capacitance @ frequency: 15pF @ 1MHz
  • Peak Pulse Current(Ippm): 5A (8/20μs)
  • Power Dissipation - Pd: 75W
  • Package: 0503/SOD-723F package
  • Supply and Demand Status: Balanced
  • Package Contains: 4k pcs
