Same model may have multiple batches, images only for reference.

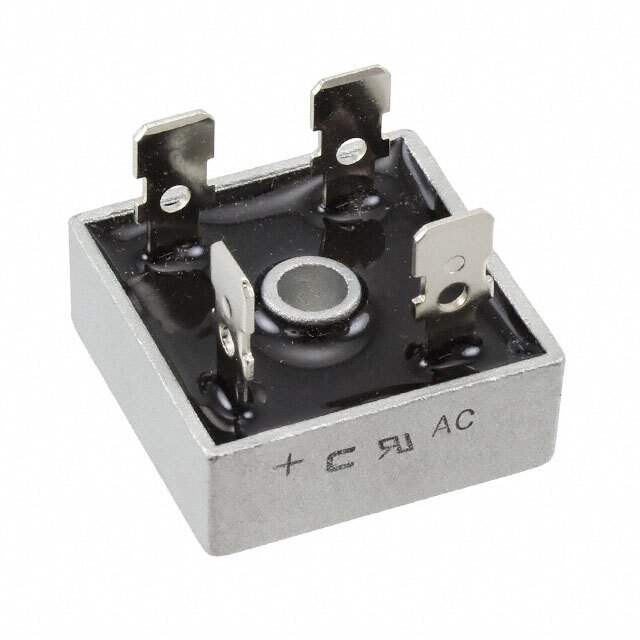

KBPC1510-G Real Image
Same model may have multiple batches, images only for reference.

KBPC1510-G

Part No KBPC1510-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 15A 1000V KBPC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 7.5A
Current - Reverse Leakage @ Vr 10μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package KBPC
Win Source Part Number 002139-KBPC1510-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KBPC1510-G CAD Model

Description

The KBPC1510-G from Comchip Technology is a standard diode type electronic component that can handle a current of 15A.

  • Voltage Forward (Vf): 1.1V @ 7.5A
  • Voltage Peak Reverse (Max): 1000V
  • Mounting Technology: chassis mount
  • Packaging: bulk
  • Category: discrete semiconductor products
  • Popularity: medium
  • Supply and Demand Status: limited
  • Fake Threat: 39%
  • Quantity per Package: 50
  • Operating Temperature Range: -55°C to 150°C (TJ)
