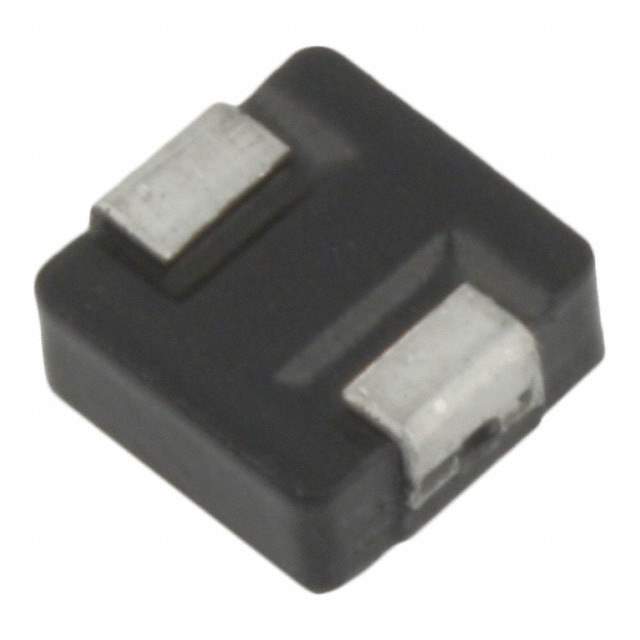

HCM0703-100-R Real Image
Same model may have multiple batches, images only for reference.

HCM0703-100-R

Part No HCM0703-100-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 3.2A 77.6 MOHM / High current power inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 10μH
Tolerance ±20%
Current Rating (Amps) 3.2A
Current - Saturation 7A
Shielding Shielded
DC Resistance (DCR) 77.6mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809454-HCM0703-100-R
Ultra Librarian 3D Model Ultra Librarian HCM0703-100-R CAD Model

Description

The 747908 electronic component from Eaton - Electronics Division is a wirewound type electronic component.

  • Inductance: 10μH
  • Tolerance: ±20%
  • Core Material: Iron Powder
  • Maximum DC Resistance (DCR): 77.6mOhm
  • Supplier Device Package: Nonstandard
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.280" L x 0.260" W (7.10mm x 6.60mm)
  • Height (Seated): 0.118" (3.00mm)
  • Supply and Demand Status: Limited
