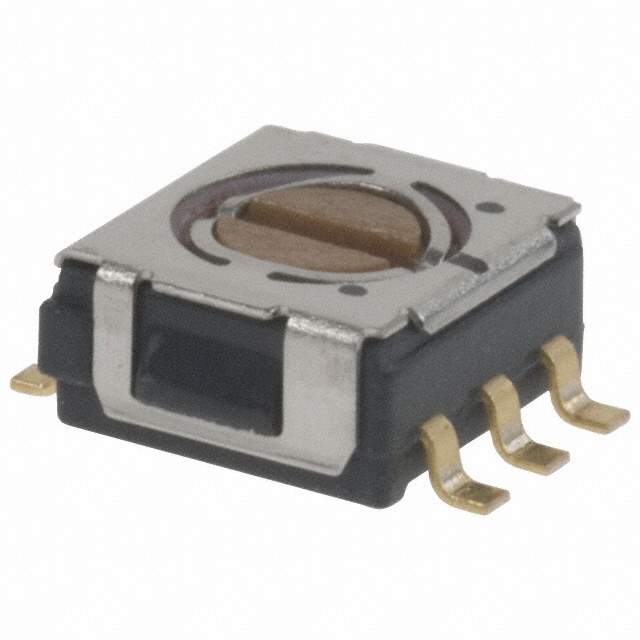

CS-4-22YTB

Part No CS-4-22YTB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP DPDT 100MA 16V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit DPDT
Number of Positions 2
Current Rating 100mA
Voltage Rating 16VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.051" (1.30mm)
Washable Yes
Body Material Epoxy
Length 0.197" (5.00mm)
Temperature Range - Operating -25°C to 70°C
Electrical Life 200 Cycles
Win Source Part Number 013293-CS-4-22YTB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CS-4-22YTB CAD Model

Description

CS-4-22YTB

The CS-4-22YTB is a versatile and reliable electronic component designed for various applications, providing excellent performance and durability. Its compact size makes it suitable for integration into a wide range of electronic projects.

  • Applications:
    • Consumer Electronics
    • Industrial Automation Systems
    • Robotics
    • Communication Devices
  • Features and Benefits:
    • High Reliability and Stability
    • Compact and Lightweight Design
    • Wide Operating Temperature Range
    • Easy Integration with Standard Interfaces

This component is ideal for engineers and hobbyists looking to implement high-efficiency solutions in their electronics designs.
