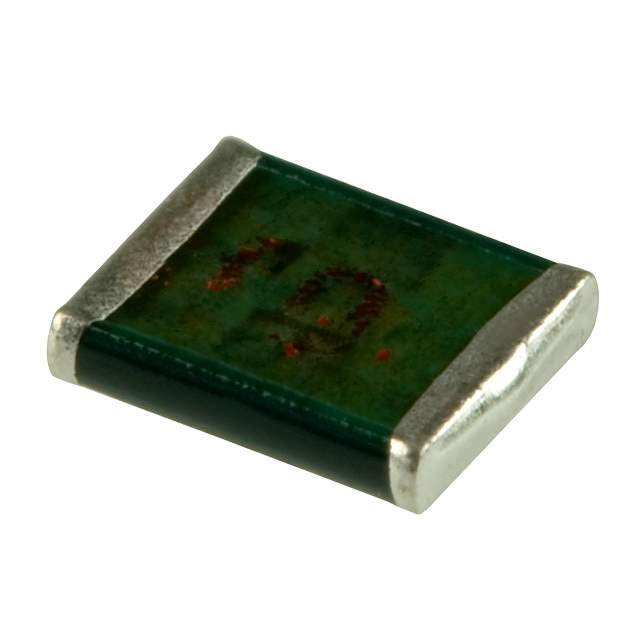

MC12FA620J-F

Part No MC12FA620J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 62PF 5% 100V 1210 / Cap Mica 62pF 100V 5% (3.2 X 2.5 X 2mm) SMD 125°C Bulk
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MC
Packaging Bulk
Capacitance 62pF
Tolerance ±5%
Voltage Rating DC 100V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 1210
Features RF, High Q, Low Loss
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 777898-MC12FA620J-F
Popularity Medium
Fake Threat In the Open Market 94 pct.
Supply and Demand Status Limited
Family Name MC
Introduction Date March 14, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Alternative Parts
(Cross-Reference)
MC12FA620J; MC12FA620JT; MC12FA620J-TF; MC12FA620G-TF;

Description

The Cornell Dubilier MC12FA620J-F capacitor is a high-quality ceramic capacitor with a capacitance of 62pF and a voltage rating of 100V. It has a tolerance of ±5% and is designed for RF, high Q, and low loss applications. The capacitor has a size/dimension of 0.126" L x 0.098" W (3.20mm x 2.50mm) and a height of 0.079" (2.00mm). It is surface mountable and packaged in a 1210 case. The capacitor is part of the MC series and has an estimated EOL date of 2027. It is popular in the market and has a limited supply and demand status.
