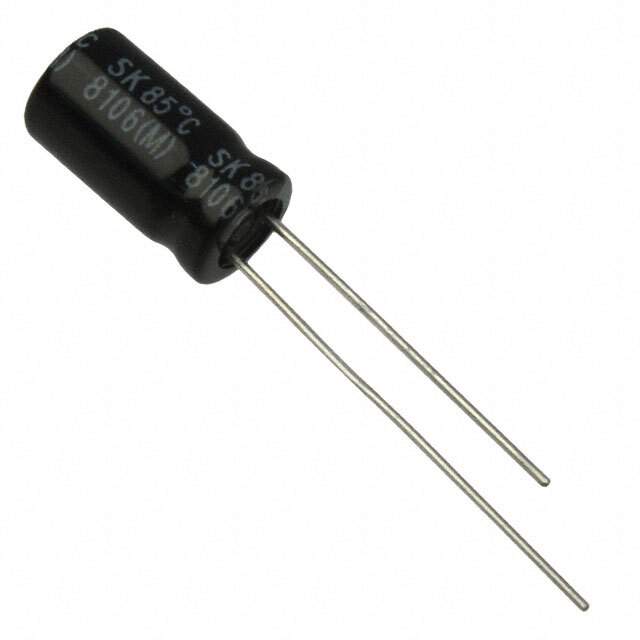

Same model may have multiple batches, images only for reference.

SK010M160ST

Get a Quote

Part No	SK010M160ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SK010M160ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SK
Package	Bulk
Capacitance	1 µF
Tolerance	±20%
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	199.04Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	17 mA @ 120 Hz
Ripple Current @ High Frequency	23.8 mA @ 1 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308244-SK010M160ST
Ultra Librarian 3D Model	Ultra Librarian SK010M160ST CAD Model

Alternative Products

Description

The 1308244-SK010M160ST aluminum electrolytic capacitor from Cornell Dubilier Electronics is a general-purpose capacitor with a capacitance of 1 µF and a voltage rating of 160 V.

Capacitance: 1 µF
Voltage Rating: 160 V
Tolerance: ±20%
ESR: 199.04Ohm @ 120Hz
Package/Case: Radial, Can
Mounting Type: Through-Hole
Height: 0.512" (13.00mm)
Lead Spacing: 0.098" (2.50mm)
Lifetime: 2000 Hrs @ 85°C
Polarized: Yes
Ripple Current: 17 mA @ 120 Hz
Ripple Current: 23.8 mA @ 1 kHz
Package: Bulk (1000 units)
