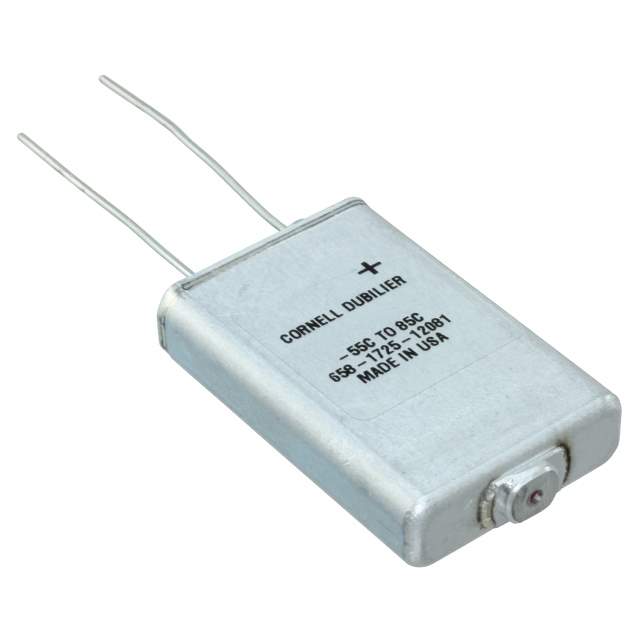

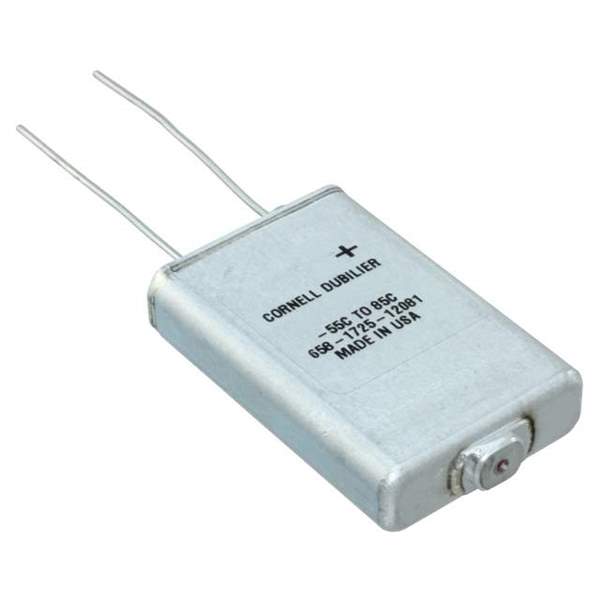

Same model may have multiple batches, images only for reference.

THAS702M020AB0C

Get a Quote

Part No	THAS702M020AB0C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 7000UF 20% 20V FLATPACK / 7000 µF 20 V Aluminum Electrolytic Capacitors FlatPack 80mOhm @ 120Hz 5000 Hrs @ 105°C
Datasheet	THAS702M020AB0C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	THAS
Package	Bulk
Capacitance	7000 µF
Tolerance	±20%
Voltage - Rated	20 V
ESR (Equivalent Series Resistance)	80mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.2 A @ 120 Hz
Ripple Current @ High Frequency	2.42 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.807" L x 1.000" W (45.90mm x 25.40mm)
Height - Seated (Max)	0.366" (9.30mm)
Mounting Type	Through Hole
Package / Case	FlatPack
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0055
Standard Package	60
Win Source Part Number	1090298-THAS702M020AB0C
Ultra Librarian 3D Model	Ultra Librarian THAS702M020AB0C CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) THAS series capacitor is an aluminum electrolytic capacitor that is designed for general purpose applications.

Capacitance: 7000 µF
Tolerance: ±20%
Voltage Rating: 20V
Package: flatpack
Height (Seated): 0.366" (9.30mm)
Lead Spacing: 0.394" (10.00mm)
ESR (Equivalent Series Resistance): 80mOhm @ 120Hz
Lifetime @ 105°C: 5000 Hrs
Polarity: polar
Mounting Type: through hole
Package Type: bulk
Standard Package: 60
Operating Temperature Range: -55°C to 105°C
MSL Level: Not Applicable
HTSUS: 8532.22.0055
