Same model may have multiple batches, images only for reference.

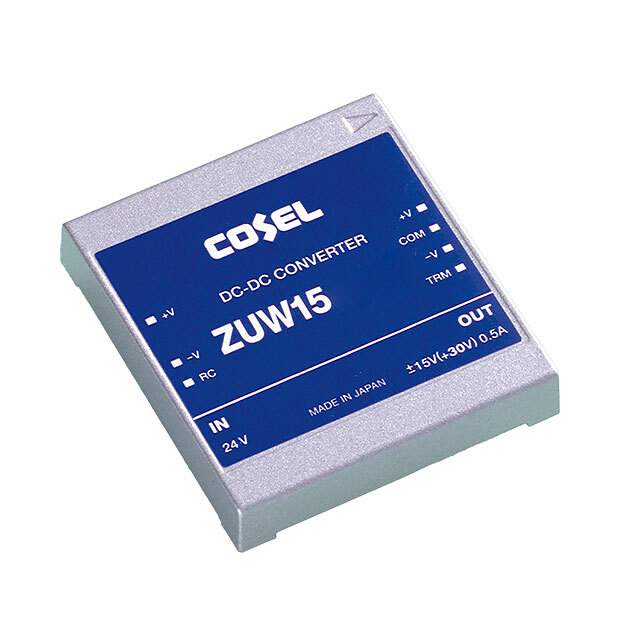

ZUW154812 Real Image
Same model may have multiple batches, images only for reference.

ZUW154812

Part No ZUW154812
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Module DC-DC 48VIN 2-OUT 12V/-12V 0.65A 15.6W 7-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUW
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 36V
Voltage Input MAX 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 650mA, 650mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 83%
Mounting Style Through Hole
Package 7-DIP Module
Dimension 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
Win Source Part Number 800428-ZUW154812
Popularity Medium
Supply and Demand Status Limited
Family Name ZUW154812
Introduction Date August 22, 2005
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ZUW154812 CAD Model

Description

The Cosel USA ZUW154812 is an isolated module that offers remote On/Off, OCP, and OVP features.

  • Features: Remote On/Off, OCP, OVP
  • Output 1 Voltage: 12V
  • Output 2 Voltage: -12V
  • Series: ZUW
  • Package: 7-DIP
  • Isolation Voltage: 500V
  • Maximum Output Current: 650mA
  • Operating Temperature: -20°C ~ 71°C (with derating)
