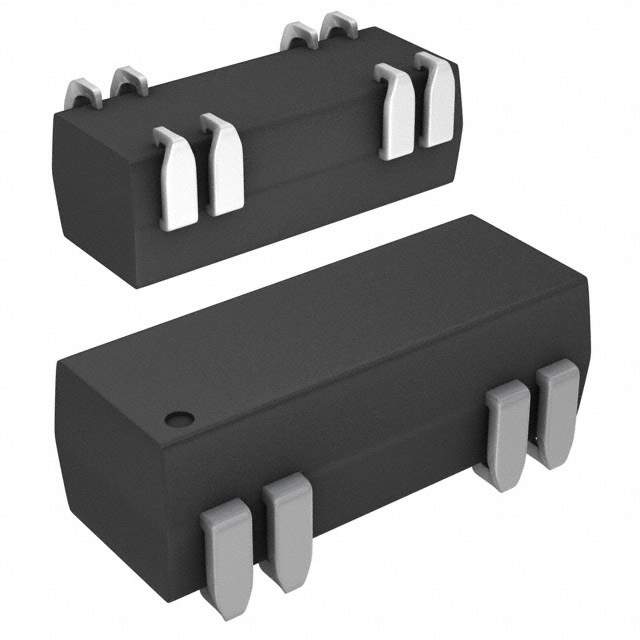

8L61-12-111 Real Image
Same model may have multiple batches, images only for reference.

8L61-12-111

Part No 8L61-12-111
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED SPDT 250MA 12V
Datasheet
8L61-12-111 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 8L
Package Bulk
Mounting Type Surface Mount
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 250 mA
Switching Voltage 100VAC, 100VDC - Max
Coil Current 24 mA
Coil Type Non Latching
Features Diode, Electrostatic Shield
Termination Style J Lead
Must Operate Voltage 9.6 VDC
Must Release Voltage 1 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 500 Ohms
Base Product Number 8L61
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1351627-8L61-12-111
Ultra Librarian 3D Model Ultra Librarian 8L61-12-111 CAD Model

Description

The 8L series reed relay is a high-quality component designed for use in various electronic applications. This SPDT (1 Form C) relay is manufactured by Coto Technology and features a J-lead termination style and comes with a diode and electrostatic shield.

  • Type: SPDT (1 Form C)
  • Termination: J-Lead
  • Features: Diode and Electrostatic Shield
  • Coil Voltage: 12VDC
  • Coil Resistance: 500 Ohms
  • Coil Current: 24mA
  • Contact Rating: 250mA
  • Switching Voltage: 100VAC/100VDC max
  • Operate Time: 1ms
  • Release Time: 1ms
  • Temperature Range: -20°C to 85°C
  • Packaging: Bulk
  • Standard Package: 25 units
