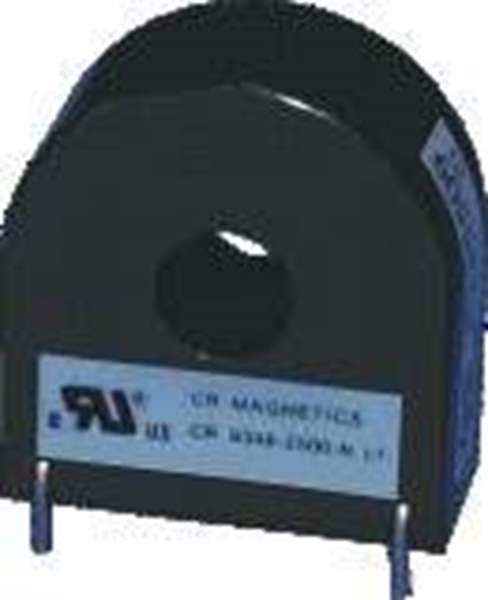

CR8348-2500-N Real Image
Same model may have multiple batches, images only for reference.

CR8348-2500-N

Part No CR8348-2500-N
Manufacturer CR Magnetics Inc.
Catalog Current Sense Transformers
Description Revenue Grade Vertical PCB Current Transformer, Solid Core, 2500 Turns, 7.5 Vmax RMS, 40 Arms Maximum Input Current Range, 0.27" ID
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Current Sense Transformers
Mfr CR Magnetics Inc.
Series -
Win Source Part Number 1384718-CR8348-2500-N
Package Bulk
Product Status Active
Frequency Range 20Hz ~ 1kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 40A
Current Ratio 2500:1
DC Resistance (DCR) 134Ohm
Mounting Type Through Hole
Size / Dimension 0.925" L x 0.433" W (23.50mm x 11.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Termination Style PC Pin
Ultra Librarian 3D Model Ultra Librarian CR8348-2500-N CAD Model
