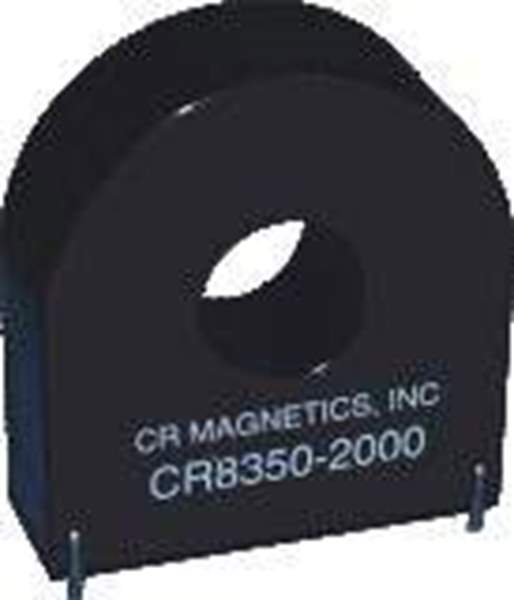

CR8350-2500-N Real Image
Same model may have multiple batches, images only for reference.

CR8350-2500-N

Part No CR8350-2500-N
Manufacturer CR Magnetics Inc.
Catalog Current Sense Transformers
Description CURR SENSE XFMR 100A T/H / 100 A Current Sense Transformer 20Hz ~ 1kHz 57Ohm Through Hole
Datasheet
CR8350-2500-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr CR Magnetics Inc.
Series CR8300
Package Bulk
Frequency Range 20Hz ~ 1kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 100 A
DC Resistance (DCR) 57Ohm
Mounting Type Through Hole
Size / Dimension 1.476" L x 0.551" W (37.50mm x 14.00mm)
Height - Seated (Max) 1.535" (39.00mm)
Termination Style PC Pin
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1337108-CR8350-2500-N
Ultra Librarian 3D Model Ultra Librarian CR8350-2500-N CAD Model

Description

The CR8350-2500-N is a non-invasive (solid core) current sense transformer from CR Magnetics Inc.

  • Category: Transformers - Current Sense
  • Series: CR8300
  • Frequency Range: 20Hz ~ 1kHz
  • DC Resistance (DCR): 57Ohm
  • Maximum Current Rating: 100A
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Size: 1.476" L x 0.551" W (37.50mm x 14.00mm)
  • Height (Seated): 1.535" (39.00mm)
  • Packaging: Bulk
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
