Same model may have multiple batches, images only for reference.

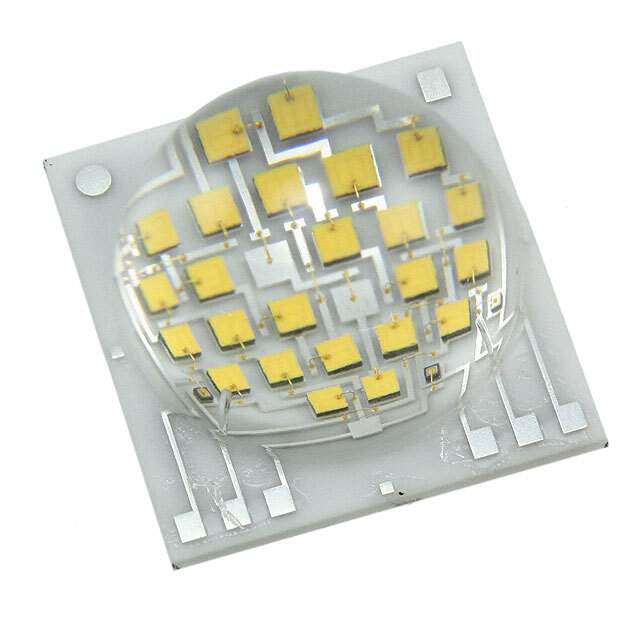

MPLEZW-A1-0000-0000C035H Real Image
Same model may have multiple batches, images only for reference.

MPLEZW-A1-0000-0000C035H

Part No MPLEZW-A1-0000-0000C035H
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED EASYWHT WARM WHT 3500K 6SMD / LED Uni-Color White 3500K 80 6-Pin SMD T/R
Datasheet
MPLEZW-A1-0000-0000C035H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series EasyWhite, XLamp MPL-EZW
Packaging Reel package
Part Status Obsolete(EOL)
Color White, Warm
CCT (K) 3500K 2-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 638 lm
Flux @ 25°C, Current - Test 850 lm (800 lm ~ 900 lm)
Current - Test 3 x 150mA
Voltage - Forward (Vf) (Typ) 25V
Lumens/Watt @ Current - Test 76 lm/W
CRI (Color Rendering Index) 80
Current - Max 3 x 250mA
Viewing Angle 125°
Mounting SMD
Package 6-SMD, No Lead
Manufacturer Package SMD
Dimension 0.518" L x 0.478" W (13.15mm x 12.15mm)
Height - Seated (Maximum) 0.250" (6.35mm)
Win Source Part Number 789339-MPLEZW-A1-0000-0000C035H
Popularity Medium
Supply and Demand Status Limited
Family Name MPLEZW-A1-0000-0000C035H
Introduction Date March 24, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MPLEZW-A1-0000-0000C035H CAD Model

Description

The Cree Inc. MPLEZW-A1-0000-0000C035H is an EasyWhite XLamp MPL-EZW LED.

  • Package: 6-SMD, no lead
  • Emitted Color: White, Warm
  • Color Temperature: 3500K 2-Step MacAdam Ellipse
  • Viewing Angle: 125°
  • Maximum Forward Voltage (Vf): 25V
  • Maximum Current: 3 x 250mA
  • Current Test: 3 x 150mA
  • Flux: 850 lm (800 lm ~ 900 lm) @ 25°C, current test
  • Flux: 638 lm @ 85°C, current test
  • Lumens/Watt: 76 lm/W @ current test
  • CRI (Color Rendering Index): 80
  • Series: EasyWhite, XLamp MPL-EZW
  • Lifecycle Status: Obsolete (EOL)
  • Introduction Date: March 24, 2010
