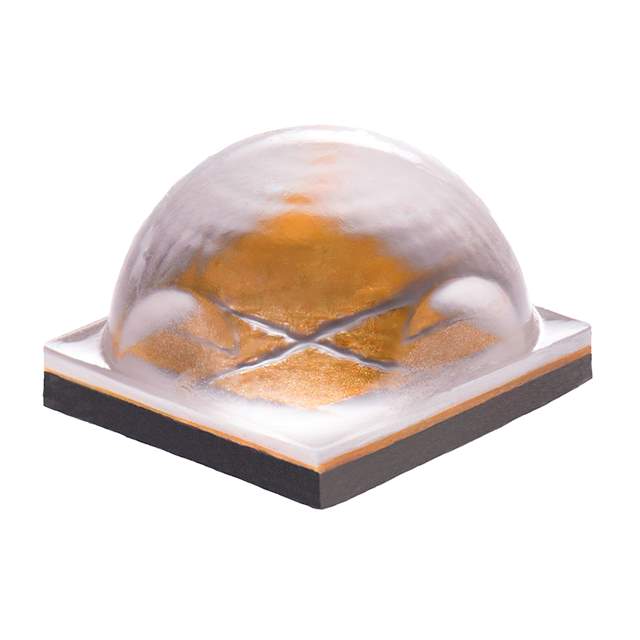

XHP50A-00-0000-0D00J20E1 Real Image
Same model may have multiple batches, images only for reference.

XHP50A-00-0000-0D00J20E1

Part No XHP50A-00-0000-0D00J20E1
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP XH-P50 WHITE SMD / LED Uni-Color White 6500K 68 2-Pin SMD EP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp XHP50
Packaging Reel package
Color White, Cool
CCT (K) 6500K
Flux @ 85°C, Current - Test 1080 lm (1040 lm ~ 1120 lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 12V
Lumens/Watt @ Current - Test 129 lm/W
Current - Max 1.5A
Viewing Angle 120°
Mounting SMD
Package 2020 (5050 Metric)
Manufacturer Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.146" (3.71mm)
Thermal Resistance of Package 1.2°C/W
Win Source Part Number 800102-XHP50A-00-0000-0D00J20E1
Popularity Medium
Supply and Demand Status Balance
Family Name XHP50A-00-0000-0D00J20E1
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian XHP50A-00-0000-0D00J20E1 CAD Model

Description

The Cree Inc. Xlamp XHP50 is a high-performance SMD LED with a maximum current of 1.5A and a voltage-forward of Cree Inc. 12V.

  • Maximum Current: 1.5A
  • Voltage-Forward: 12V
  • Package: 2020 (5050 Metric)
  • Viewing Angle: 120 degrees
  • Color: White, Cool
  • CCT: 6500K
  • Thermal Resistance: 1.2 degrees Celsius per watt
  • Flux: 1080 lumens @ 85 degrees Celsius
  • Lumens/Watt: 129 lm/W @ 700mA
  • Mounting: SMD
  • Height: 0.146 inches (3.71mm)
