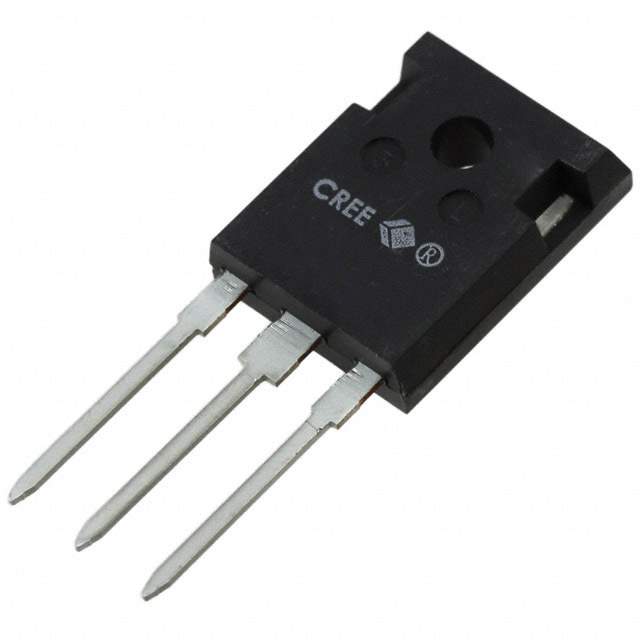

Same model may have multiple batches, images only for reference.

C2M0045170D

Name: C2M0045170D
Brand: Cree/Wolfspeed
SKU: 1325241
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	C2M0045170D
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 1700V 72A TO247-3 / N-Channel 1700 V 72A (Tc) 520W (Tc) Through Hole TO-247-3
Datasheet	C2M0045170D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	70mOhm @ 50A, 20V
Vgs(th) (Max) @ Id	4V @ 18mA
Gate Charge (Qg) (Max) @ Vgs	188 nC @ 20 V
Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	3672 pF @ 1000 V
Power Dissipation (Max)	520W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	Through Hole
Supplier Device Package	TO-247-3
Case / Package	TO-247-3
Base Product Number	C2M0045170
RoHS Status	RoHS Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	-3312-C2M0045170D
Standard Package	30
Win Source Part Number	1325241-C2M0045170D
Ultra Librarian 3D Model	Ultra Librarian C2M0045170D CAD Model

Alternative Products

Description

The C2M0045170D is a N-Channel SiCFET (Silicon Carbide) Transistor manufactured by Wolfspeed, Inc.

Drain to Source Voltage: 1700 V
Continuous Drain Current: 72A (Tc)
Rds On: 70mOhm @ 50A, 20V
Gate Charge (Qg) (Max) @ Vgs: 188 nC @ 20 V
Input Capacitance (Ciss) (Max) @ Vds: 3672 pF @ 1000 V
Operating Temperature Range: -40°C to 150°C (TJ)
Package: TO-247-3 case
RoHS Compliant: Yes
Ideal for Use: in Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single.
