Same model may have multiple batches, images only for reference.

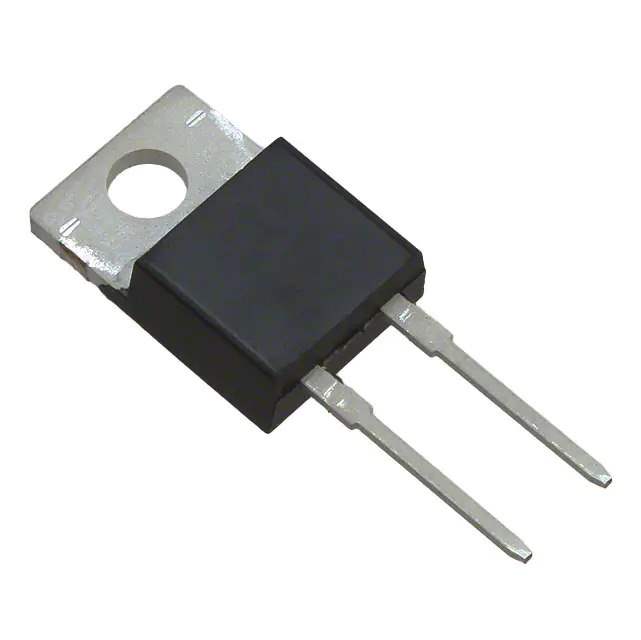

C4D10120A Real Image
Same model may have multiple batches, images only for reference.

C4D10120A

Part No C4D10120A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARB 1.2KV 33A TO220-2
Datasheet
C4D10120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Cree/Wolfspeed
Series Z-Rec®
Package Tube
Product Status Active
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 33A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 250 µA @ 1200 V
Capacitance @ Vr, F 754pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C4D10120
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 575823-C4D10120A
Ultra Librarian 3D Model Ultra Librarian C4D10120A CAD Model

Description

The C4D10120A is a high-performance rectifier diode designed for various applications. The Cree/Wolfspeed C4D10120A belongs to the Z-Rec® series and features SiC (Silicon Carbide) Schottky technology, providing excellent efficiency and reliability.

  • Voltage rating: 1200V
  • Current rating: 33A
  • No recovery time: yes
  • Mounting: through-hole
  • Operating temperature range: -55°C to 175°C
  • Standard package: 50 pcs
