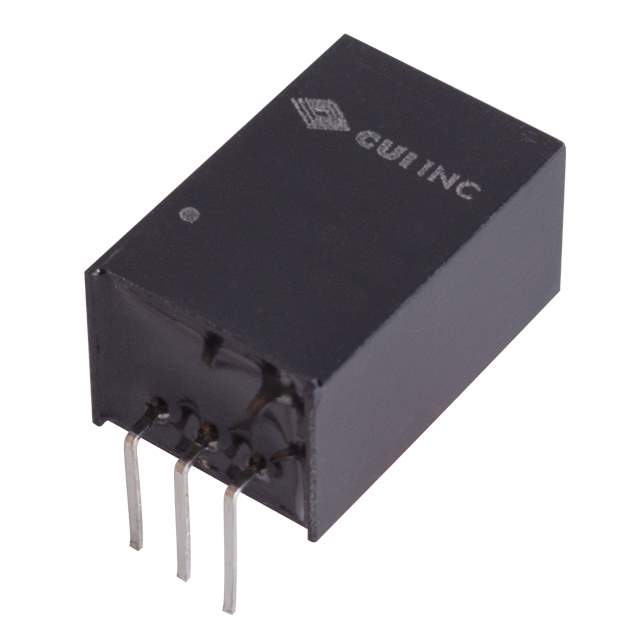

Same model may have multiple batches, images only for reference.

V7809-1000R

Name: V7809-1000R
Brand: CUI Inc.
SKU: 1340208
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	V7809-1000R
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 9W / Linear Regulator Replacement DC DC Converter 1 Output 9V 1A 12V - 32V Input
Datasheet	V7809-1000R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	V78-1000
Package	Tube
Product Status	Obsolete
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	12V
Voltage - Input (Max)	32V
Voltage - Output 1	9V
Current - Output (Max)	1A
Power (Watts)	9 W
Applications	ITE (Commercial)
Features	OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95%
Mounting Type	Through Hole, Right Angle
Package / Case	3-SIP Module
Size / Dimension	0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Base Product Number	V7809
Standard Package	44
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340208-V7809-1000R
Ultra Librarian 3D Model	Ultra Librarian V7809-1000R CAD Model

Alternative Products

Description

The V7809-1000R is a DC-DC converter that belongs to the category of power supplies.

Product Type: linear regulator replacement type
Power: 9 W
Number of Outputs: 1
Current - Output (Max): 1A
Voltage Input (Min): 12V
Voltage Input (Max): 32V
Voltage Output: 9V
Efficiency: 95%
Package: a tube
Mounting Type: through-hole, right angle
Operating Temperature: -40°C ~ 85°C
Manufacturer: CUI Inc.
Base Product Number: V7809
