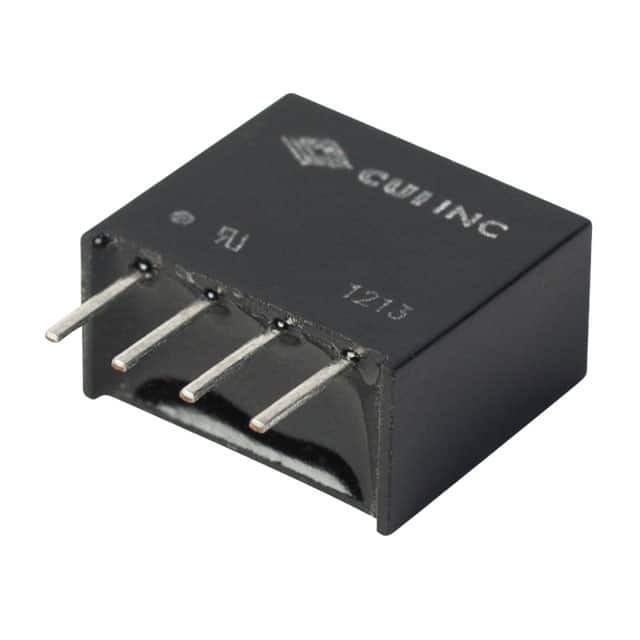

Same model may have multiple batches, images only for reference.

VBSD1-S12-S5-SIP

Get a Quote

Part No	VBSD1-S12-S5-SIP
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	VBSD1-SIP (1W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm)
Standard Package	43 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847615-VBSD1-S12-S5-SIP
Ultra Librarian 3D Model	Ultra Librarian VBSD1-S12-S5-SIP CAD Model

Alternative Products

Description

The VBSD1-SIP (1W) is a power supply module from CUI Inc.

Size: 0.46" L x 0.24" W x 0.39" H
Type: Isolated Module
Voltage Isolation: 1 kV
Number of Outputs: Single
Output Voltage: 5V
Maximum Output Current: 200mA
Input Voltage: 10.8V to 13.2V
Protection: SCP (Short Circuit Protection)
Efficiency: 78%
Application: ITE (Commercial)
Operating Temperature: -40°C to 85°C
Mounting Type: Through Hole
Package / Case: 4-SIP Module
Product Status: Obsolete
