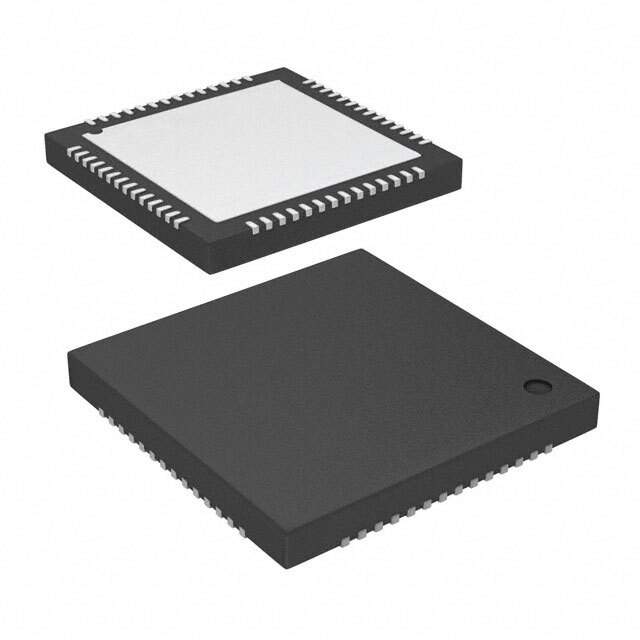

CYBL10562-56LQXI Real Image
Same model may have multiple batches, images only for reference.

CYBL10562-56LQXI

Part No CYBL10562-56LQXI
Manufacturer Cypress Semiconductor Corp
Catalog RF Receivers
Description IC RF TXRX+MCU BLUETOOTH 56UFQFN  /  IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 56-UFQFN Exposed Pad
Datasheet
CYBL10562-56LQXI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Cypress Semiconductor Corp
Package Tray
Product Status Obsolete
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 3dBm
Sensitivity -89dBm
Memory Size 128kB Flash, 16kB SRAM
Serial Interfaces I2C, I2S, SPI, UART
GPIO 36
Voltage - Supply 1.9V ~ 5.5V
Current - Receiving 16.4mA
Current - Transmitting 15.6mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 56-UFQFN Exposed Pad
Supplier Device Package 56-QFN (7x7)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.39.0001
Other Names 428-3359,CYPCYPCYBL10562-56LQXI,2156-CYBL10562-56LQXI
Standard Package 260
Win Source Part Number 1054456-CYBL10562-56LQXI
Ultra Librarian 3D Model Ultra Librarian CYBL10562-56LQXI CAD Model

Description

The CYBL10562-56LQXI is an RF Transceiver IC that belongs to the Bluetooth family and is used for TxRx + MCU.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.1
  • Memory Size: 128kB Flash, 16kB SRAM
  • Power Output: 3dBm
  • Sensitivity: -89dBm
  • Data Rate (max): 1Mbps
  • Current (Receiving): 16.4mA
  • Current (Transmitting): 15.6mA
  • Package/Case: 56-UFQFN Exposed Pad
  • Supplier Device Package: 56-QFN (7x7)
  • Temperature Range: -40°C to 85°C
  • Alternative Parts: CYBL10561-56LQXI, CYBL10162-56LQXI, CYBL10462-56LQXI, and MKW40Z160VHT4CYBL1056256LQXI
  • MSL Level: 3 (168 Hours)
  • REACH Status: REACH Unaffected
  • HTSUS: 8542.39.0001
  • Product Status: Obsolete
