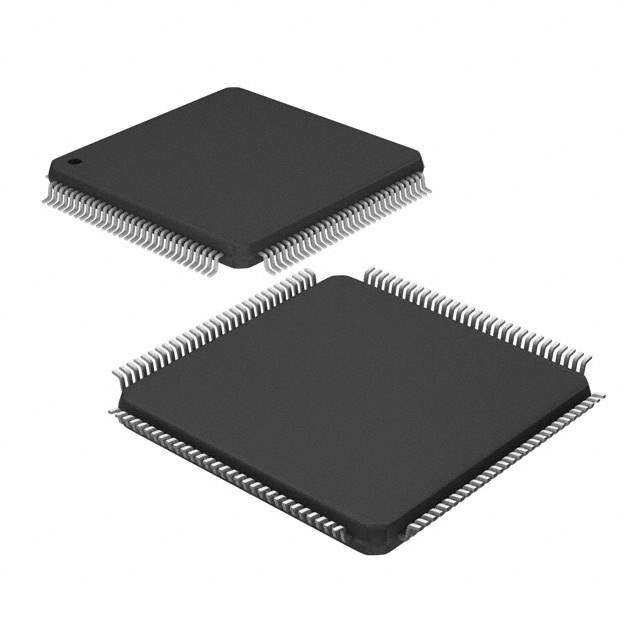

MB9BF566RPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

MB9BF566RPMC-G-JNE2

Part No MB9BF566RPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 544KB FLASH 120LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M4F series Microcontroller IC 32-Bit 160MHz 544KB (544K x 8) FLASH 120-LQFP (16x16)
Manufacturer Cypress Semiconductor Corp
Series FM4 MB9B560R
Package Tray
Part Status Obsolete
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit
Speed 160MHz
Connectivity CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 100
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
Supply Voltage 2.7V ~ 5.5V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 120-LQFP
Case / Package 120-LQFP (16x16)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 84
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883101-MB9BF566RPMC-G-JNE2
Ultra Librarian 3D Model Ultra Librarian MB9BF566RPMC-G-JNE2 CAD Model

Description

The Cypress Semiconductor Corp FM4 MB9B560R is a microcontroller IC that features an ARM Cortex-M4F series core processor with a speed of 160MHz.

  • Core Processor: ARM Cortex-M4F series
  • Speed: 160MHz
  • Program Memory Size: 544KB (544K x 8) FLASH
  • Input/Output Ports: 100
  • Connectivity: CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, UART/USART, and USB
  • Supply Voltage: 2.7V ~ 5.5V
  • Package: 120-LQFP tray
