Same model may have multiple batches, images only for reference.

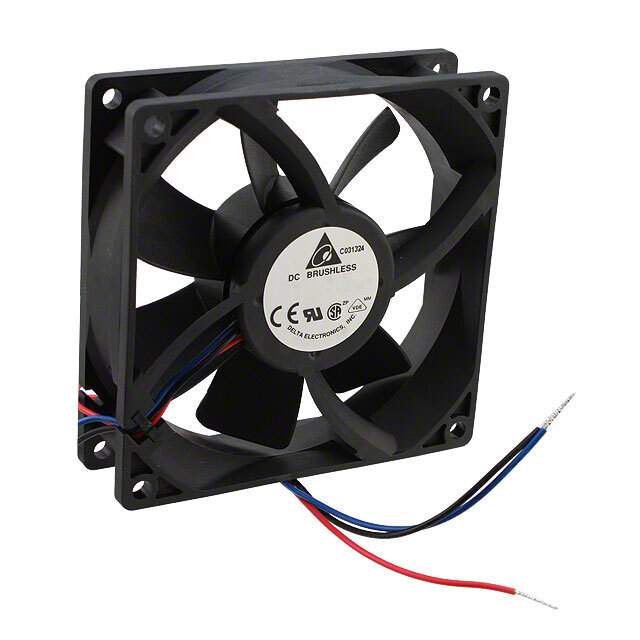

AFB0924VH-F00 Real Image
Same model may have multiple batches, images only for reference.

AFB0924VH-F00

Part No AFB0924VH-F00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 92X25.4MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 67.8 CFM (1.90m³/min) 3 Wire Leads
Datasheet
AFB0924VH-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Obsolete
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Width 25.40mm
Air Flow 67.8 CFM (1.90m³/min)
Static Pressure 0.302 in H2O (75.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 45.0dB(A)
Power (Watts) 5.28 W
RPM 3800 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.218 lb (98.88 g)
Current Rating (Amps) 0.220A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0924
Standard Package 72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1342292-AFB0924VH-F00
Ultra Librarian 3D Model Ultra Librarian AFB0924VH-F00 CAD Model

Description

The AFB0924VH-F00 is a DC brushless fan from the AFB series. Bold text is added to AFB.

  • Voltage Rating: 24VDC
  • Power Rating: 5.28W
  • Lifetime: 70000 hours @ 40°C
  • Weight: 0.218 pounds
  • Width: 25.40mm
  • Fan Type: Tube Axial
  • Bearing Type: Ball Bearings
  • Noise Level: 45.0dB(A)
  • RPM: 3800
  • Static Pressure: 0.302 in H2O
  • Air Flow: 67.8 CFM
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Temperature Range: 14 to 158°F
  • Approvals: CE, CSA, UL, VDE
