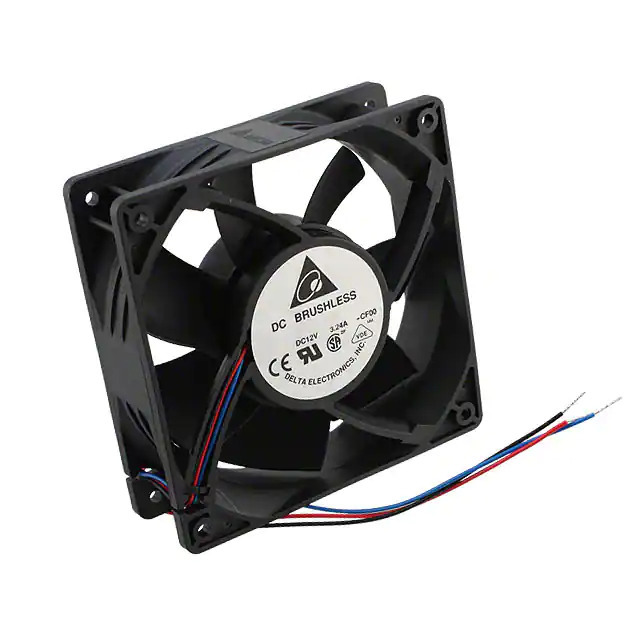

Same model may have multiple batches, images only for reference.

AFB1224SHE-CR00

Name: AFB1224SHE-CR00
Brand: Delta Electronics
SKU: 1368460
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AFB1224SHE-CR00
Manufacturer	Delta Electronics
Catalog	Fans, Thermal Management
Description	FAN AXIAL 120X38MM 24VDC WIRE
Datasheet	AFB1224SHE-CR00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr	Delta Electronics
Series	AFB
Package	Bulk
Product Status	Active
Voltage - Rated	24VDC
Size / Dimension	Square - 120mm L x 120mm H
Width	38.00mm
Air Flow	190.5 CFM (5.33m³/min)
Static Pressure	0.694 in H2O (173.0 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Noise	55.5dB(A)
Power (Watts)	14.88 W
RPM	4100 RPM
Termination	3 Wire Leads
Ingress Protection	-
Temperature Range - Operating	14 ~ 158°F (-10 ~ 70°C)
Approval Agency	CE, CSA, UL, VDE
Weight	0.728 lb (330.22 g)
Current Rating (Amps)	0.620A
Voltage Range	14 ~ 28VDC
Material - Frame	Plastic
Material - Blade	Plastic
Lifetime @ Temp.	70000 Hrs @ 40°C
Base Product Number	AFB1224
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8414.59.6590
Win Source Part Number	1368460-AFB1224SHE-CR00
Ultra Librarian 3D Model	Ultra Librarian AFB1224SHE-CR00 CAD Model

Alternative Products

Description

The Delta Electronics AFB1224SHE-CR00 is a high-performance DC brushless fan designed for efficient thermal management in electronic devices.

Voltage Rating: 24VDC
Current Rating: 0.620A
Shape: Square
Dimensions: 120mm L x 120mm H
Maximum Air Flow: 190.5 CFM
Static Pressure: 0.694 in H2O
Speed: 4100 RPM
Noise Level: 55.5dB(A)
Bearing: Ball Bearing
Approvals: CE, CSA, UL, and VDE
Weight: 0.728 lb
Series: AFB series by Delta Electronics
Feature: Locked rotor sensor feature for added protection and reliability
