Same model may have multiple batches, images only for reference.

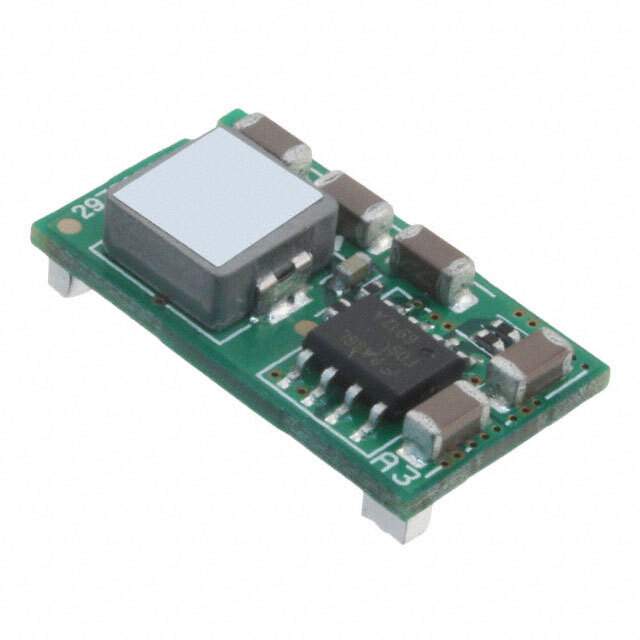

DNT12S0A0S03NFA Real Image
Same model may have multiple batches, images only for reference.

DNT12S0A0S03NFA

Part No DNT12S0A0S03NFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.75-5.5V 16.5W / Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 3A 8.3V - 14V Input
Datasheet
DNT12S0A0S03NFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi DNT12
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8.3V
Voltage - Input (Max) 14V
Voltage - Output 1 0.75 ~ 5.5V
Current - Output (Max) 3A
Power (Watts) 16.5 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 93%
Mounting SMD (SMT)
Package / Case 5-SMD Module
Dimension 0.80" L x 0.45" W x 0.27" H (20.3mm x 11.4mm x 6.9mm)
Control Features Enable, Active Low
Base Product Number DNT12S0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1062-6,941-1062-2,941-1062-1
Standard Package 300
Win Source Part Number 1003047-DNT12S0A0S03NFA
Ultra Librarian 3D Model Ultra Librarian DNT12S0A0S03NFA CAD Model

Description

The Delta Electronics 1003047-DNT12S0A0S03NFA is a non-isolated PoL module that has a remote on/off, OCP, UVLO feature.

  • Manufacturer: Delta Electronics
  • Type: Non-isolated PoL Module
  • Features: Remote On/Off, OCP, UVLO
  • Packaging: Tape and Reel
  • Standard Package: 300
  • Mounting Style: SMD (SMT)
  • Power (Watts): 16.5 W
  • Control Features: Enable, Active Low
  • Number of Outputs: 1
  • Current - Output (Max): 3A
  • Voltage - Input (Min): 8.3V
  • Voltage - Input (Max): 14V
  • Voltage - Output 1: 0.75 ~ 5.5V
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.40.9580
