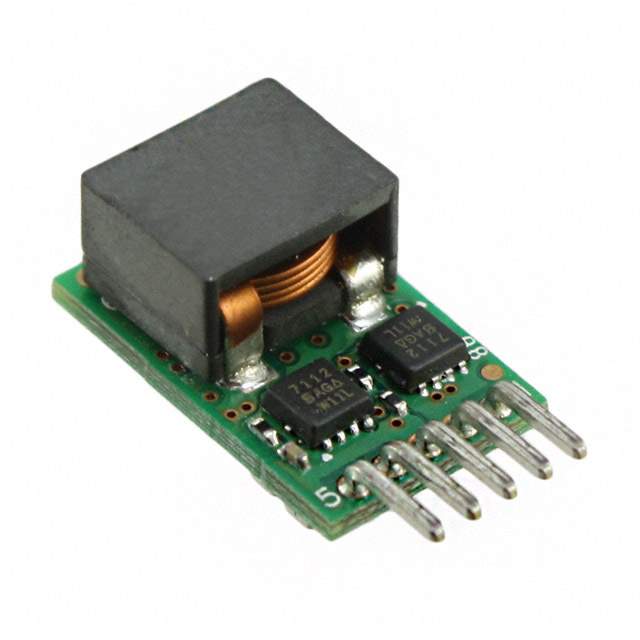

Same model may have multiple batches, images only for reference.

NE12S0A0V06PNFA

Name: NE12S0A0V06PNFA
Brand: Delta Electronics
SKU: 1335259
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NE12S0A0V06PNFA
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-5.1V 30W / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.1V 6A 3.1V - 13.8V Input
Datasheet	NE12S0A0V06PNFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Delta Electronics
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3.1V
Voltage - Input (Max)	13.8V
Voltage - Output 1	0.6 ~ 5.1V
Current - Output (Max)	6A
Power (Watts)	30 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, UVLO
Temperature Range - Operating	-40°C ~ 113°C
Efficiency	94.5%
Mounting	Through Hole
Case / Package	5-SIP Module
Size / Dimension	0.41" L x 0.43" W x 0.65" H (10.4mm x 11.0mm x 16.5mm)
Control Features	Enable, Active High
Base Product Number	NE12S0
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	941-1042
Standard Package	91
Win Source Part Number	1335259-NE12S0A0V06PNFA
Ultra Librarian 3D Model	Ultra Librarian NE12S0A0V06PNFA CAD Model

Alternative Products

Description

The Delta Electronics NE12S0A0V06PNFA is a non-isolated PoL module DC-DC converter with a power rating of 30W.

Features: Remote on/off, overcurrent protection, and undervoltage lockout
Size: 0.41 inches in length, 0.43 inches in width, and 0.65 inches in height
Output: Single
Maximum Current: 6A
Input Voltage Range: 3.1V to 13.8V
Voltage Output: Adjustable from 0.6V to 5.1V
Efficiency: 94.5%
Temperature Range: -40°C to 113°C
Mounting Package: Through-hole
