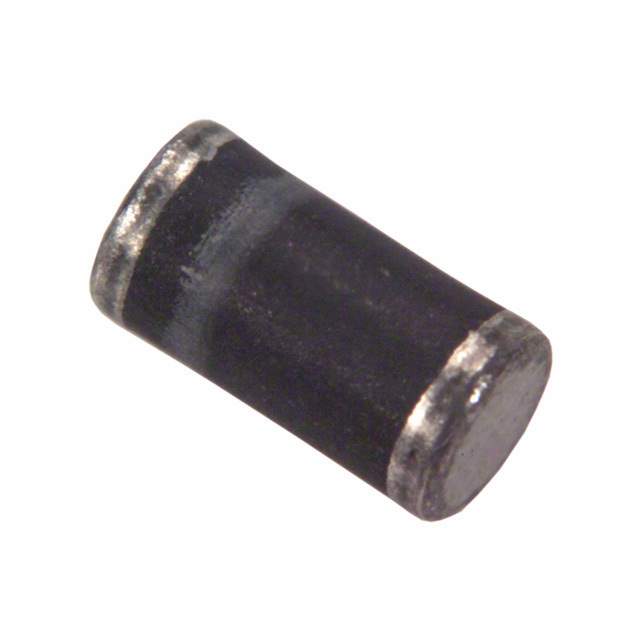

The 1N5818M is a Schottky barrier rectifier diode designed and manufactured by Diodes Incorporated. This diode is known for its low forward voltage drop and fast switching capabilities, making it an ideal choice for high-efficiency power management applications. The 1N5818M is a surface-mount device encapsulated in a robust and compact DO-213AB package, which ensures a minimal footprint on the circuit board while providing excellent thermal performance.

Key Features

• Low Forward Voltage Drop: The 1N5818M exhibits a low forward voltage drop, typically around 0.55V at 1A, which helps to reduce power loss and improve efficiency in power conversion circuits.
• High Current Capability: With a maximum average forward rectified current of 1A, this diode can handle significant current levels suitable for a wide range of applications.
• Fast Switching Speed: The fast switching action of the 1N5818M minimizes energy loss during the transition from conducting to non-conducting states, contributing to the overall efficiency of the system.
• Guard Ring for Overvoltage Protection: The built-in guard ring enhances the diode's capability to withstand transient overvoltage events, providing additional protection for sensitive electronic components.
• Low Power Loss: Thanks to its Schottky barrier design, the 1N5818M ensures low power loss during operation, which is critical for portable and battery-powered devices.
• High Reliability: Diodes Incorporated's commitment to quality means that the 1N5818M is a highly reliable component, designed to meet stringent industry standards.

Applications

The 1N5818M is versatile and can be used in various electronic circuits, including:

• DC-DC converters
• Low voltage, high-frequency inverters
• Free-wheeling diodes
• Polarity protection applications
• Portable devices and power supplies

Summary

In summary, the 1N5818M Schottky barrier rectifier from Diodes Incorporated is an exceptional choice for designers looking for a diode that offers both high efficiency and reliability. Its low forward voltage drop, high current capacity, fast switching speed, and overvoltage protection make it suitable for a wide range of applications, particularly in power management systems where performance and compactness are critical.
