Product Overview: 74AUP1G09FS3-7 by Diodes Incorporated

The 74AUP1G09FS3-7 is a high-performance, single 2-input AND gate logic IC from Diodes Incorporated, designed for optimal operation in ultra-low power applications. This advanced logic gate is part of the 74AUP family, which is known for its low-power consumption and high-speed interface technology. It is particularly suitable for battery-operated handheld devices and other power-sensitive applications where efficiency is paramount.

Constructed with advanced silicon-gate CMOS technology, the 74AUP1G09FS3-7 boasts a wide operating voltage range from 0.8V to 3.6V. This feature enables the device to support a variety of power supply options and ensures compatibility with other logic families operating at nominal voltages. Its low static power consumption, which is less than 0.9µA when the device is in a static condition, further underscores its energy efficiency.

The 74AUP1G09FS3-7 is characterized by its high-speed performance, with a typical t_pd of 3.7ns at 3.3V, allowing for quick signal processing and reduced propagation delays. Additionally, the device is equipped with input hysteresis, which enhances its noise immunity and ensures stable operation even in environments with fluctuating signal conditions.

Featuring a Schmitt-trigger action at all inputs, the 74AUP1G09FS3-7 makes it easier to interface with slow or noisy signals, making it an ideal choice for interfacing with a wide range of sensors and other input devices. The robustness of the product is further enhanced by its ESD protection, which exceeds JESD 22, ensuring that the device remains reliable and durable under various conditions.

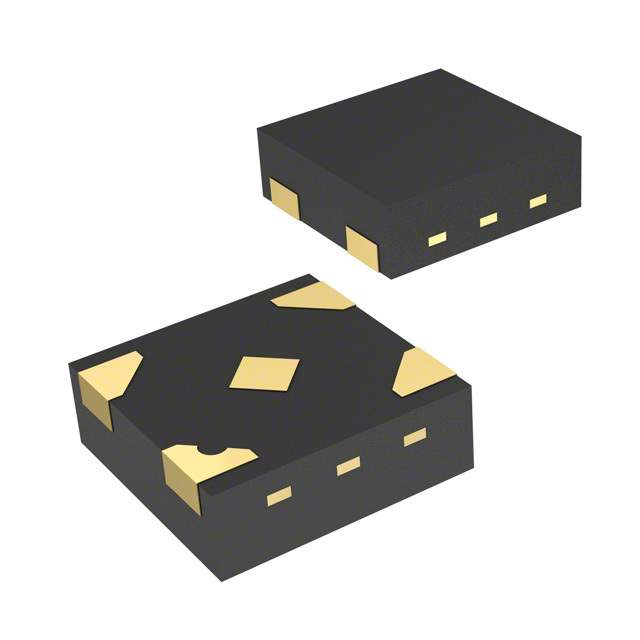

The packaging of the 74AUP1G09FS3-7 is another highlight, with the device being offered in a leadless ultra-small X2-DFN1010-6 package. This compact footprint allows for high-density mounting and is an excellent choice for space-constrained applications. Its leadless design also contributes to improved thermal performance and reduced parasitics.

Overall, the 74AUP1G09FS3-7 from Diodes Incorporated represents a highly reliable and efficient solution for designers looking to integrate a low-power, high-speed 2-input AND gate into their electronic circuits, particularly in portable and power-sensitive applications.
