Product Overview: 74LVC1G34FX4-7 by Diodes Incorporated

The 74LVC1G34FX4-7 is a high-performance, single-buffer gate designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This product is part of the 74LVC family, which is known for its low-voltage operation and high-speed interface technology. The device is tailored for voltage level translation applications, making it ideal for interfacing between different logic voltage domains within a wide range of electronic systems.

Key Features

• Low Voltage Operation: The device operates at a supply voltage range of 1.65V to 5.5V, which enables its use in low-power and battery-operated applications.
• High-Speed Performance: It boasts a high-speed performance with a propagation delay (t<sub>pd) of only 3.7ns at 3.3V, facilitating quick signal processing in time-sensitive applications.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V even when the device is powered down, offering flexibility in mixed-voltage systems.
• Low Power Consumption: The IC has a very low static and dynamic power consumption, contributing to energy efficiency in the end product.
• ESD Protection: It is equipped with high Electrostatic Discharge (ESD) protection levels, ensuring robustness and reliability in harsh environments.

Applications

The 74LVC1G34FX4-7 is versatile and can be used in a variety of applications, such as:

• Logic level shifting for interfacing different voltage domains
• Signal buffering to strengthen signal integrity
• Glitch-free power-up and power-down protection circuits
• Portable and battery-powered electronics where power efficiency is crucial

Package and Quality

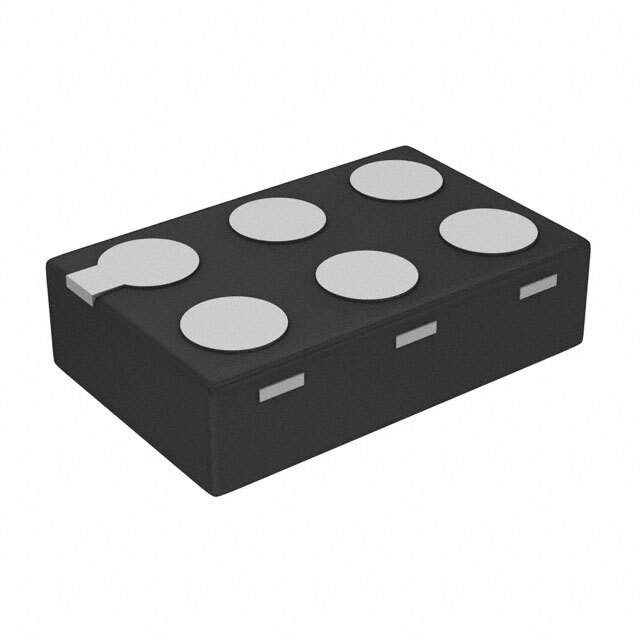

This product comes in an ultra-small and leadless X2-DFN1410-6 package, which not only saves space on the PCB but also enhances thermal performance. The compact form factor makes it well-suited for high-density and space-constrained applications. Additionally, Diodes Incorporated is committed to high standards of quality, and the 74LVC1G34FX4-7 is manufactured in facilities that are certified to ISO 9001:2015 quality management systems, ensuring reliability and performance consistency.

Whether you are designing consumer electronics, communication devices, or industrial control systems, the 74LVC1G34FX4-7 from Diodes Incorporated offers a reliable and efficient solution for your buffering and level translation needs.
