Diodes Incorporated 74LVC2G125HD4-7 Dual Buffer/Line Driver

The 74LVC2G125HD4-7 is a high-performance, dual non-inverting buffer/line driver with 3-state outputs from Diodes Incorporated. This component is designed to be used in applications requiring a high degree of drive and low power consumption. The device is part of the LVC family, which means it operates at a low voltage and is compatible with CMOS, TTL, and LVCMOS technologies.

With its wide operating voltage range of 1.65V to 5.5V, the 74LVC2G125HD4-7 is versatile and suitable for interfacing between different voltage systems within the same circuit. This makes it an ideal choice for mixed-voltage applications, such as translating signals from one logic level to another without the need for additional level shifting components.

The 74LVC2G125HD4-7 features two independent buffer/line drivers with 3-state outputs, which can be used to drive terminated lines or to isolate bus lines during power-down conditions. The 3-state outputs ensure minimal power consumption by effectively disconnecting the load when not in use. This is particularly beneficial in battery-powered devices where power efficiency is critical.

Additionally, the device boasts a high drive capability, being able to source up to 24mA and sink up to 24mA while maintaining a low ON-state resistance. This high drive strength allows the device to drive LEDs, relays, and other high-current loads with ease, while still providing fast signal propagation with a maximum propagation delay of 3.7ns at 5V.

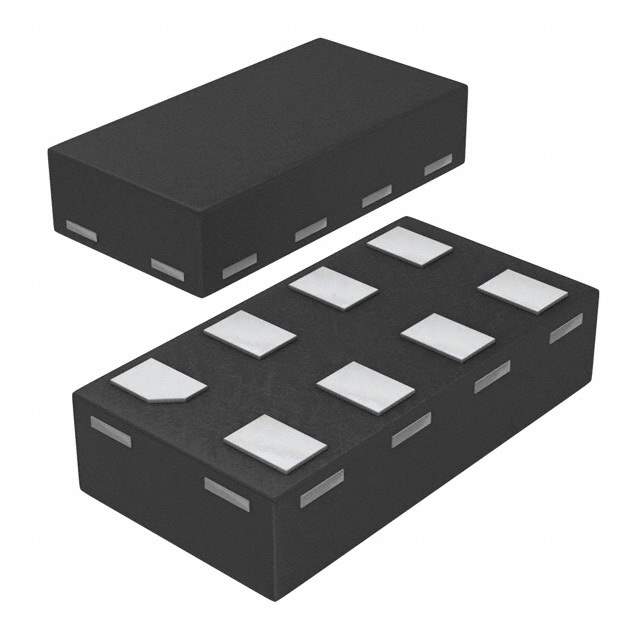

The 74LVC2G125HD4-7 comes in a small 8-pin XSON package, which is not only space-saving but also offers excellent thermal performance. Its compact size makes it suitable for high-density circuit designs where board space is at a premium.

For designers and engineers looking for a reliable and efficient dual buffer/line driver, the 74LVC2G125HD4-7 from Diodes Incorporated is an excellent choice that combines performance with flexibility, making it a valuable component in a wide range of digital applications.

Specifications:

• Logic Type: Buffer/Line Driver, Non-Inverting
• Number of Elements: 2
• Number of Bits per Element: 1
• Output Type: 3-State
• Current - Output High, Low: 24mA, 24mA
• Voltage - Supply: 1.65V-5.5V
• Operating Temperature: -40°C to 125°C
• Mounting Type: Surface Mount
• Package / Case: 8-XFDFN
