Product Overview: AP6502SP-13 from Diodes Incorporated

The AP6502SP-13 is a highly efficient, synchronous step-down DC-DC converter designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This converter is specifically tailored for systems that require a compact power solution with high efficiency and excellent thermal performance.

Key Features

• Wide Input Voltage Range: The AP6502SP-13 operates over a broad input voltage range from 4.5V to 18V, making it suitable for a diverse range of applications, including industrial, consumer electronics, and computing devices.
• High-Efficiency Synchronous Operation: With its integrated high-side and low-side power MOSFETs, the converter achieves high efficiency, which minimizes power loss and improves overall system performance.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.925V to 15V, providing flexibility to power a wide array of devices with different voltage requirements.
• Current Mode Control: The current mode control provides fast transient response and simplifies loop stabilization.
• Protection Features: It includes a variety of protection features such as over-current protection, over-temperature protection, under-voltage lockout, and thermal shutdown to ensure the safe operation of end applications.

Applications

The AP6502SP-13 is ideal for use in various applications that require a compact and efficient power solution. It is commonly used in:

• Set-Top Boxes
• Networking Systems
• Flat Panel Television and Monitors
• DVD Players and Recorders
• Distributed Power Systems

Package and Reliability

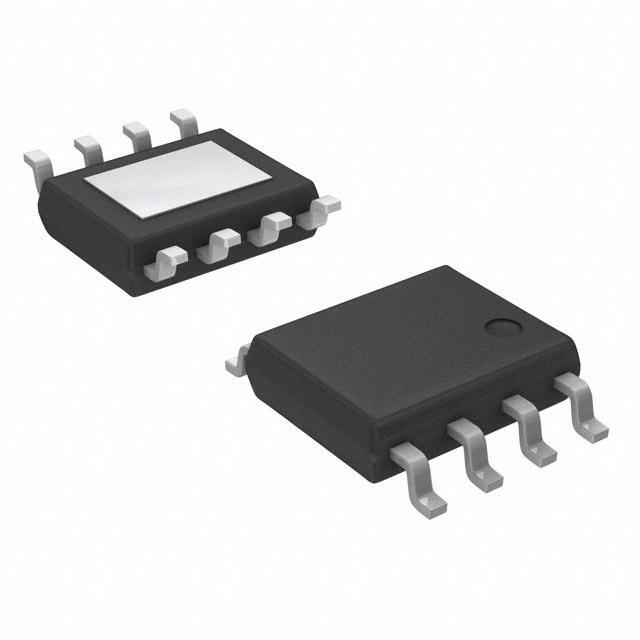

This converter is offered in a SO-8EP package, which features an exposed pad to enhance thermal dissipation. The AP6502SP-13 is designed to meet the reliability standards set forth by Diodes Incorporated, ensuring a dependable and long-lasting power solution for your electronic devices.

Environmental Compliance

Diodes Incorporated is committed to environmental stewardship. The AP6502SP-13 is compliant with RoHS standards, which means it is manufactured without the use of hazardous substances, making it an environmentally friendly choice for your power supply needs.
