Introducing the AP6503ASP-13 Buck Converter from Diodes Incorporated

The AP6503ASP-13 is a cutting-edge buck converter designed and manufactured by Diodes Incorporated, a renowned leader in the semiconductor industry. This high-performance, synchronous DC-DC converter is tailored for a wide range of applications, including consumer electronics, networking devices, and industrial systems.

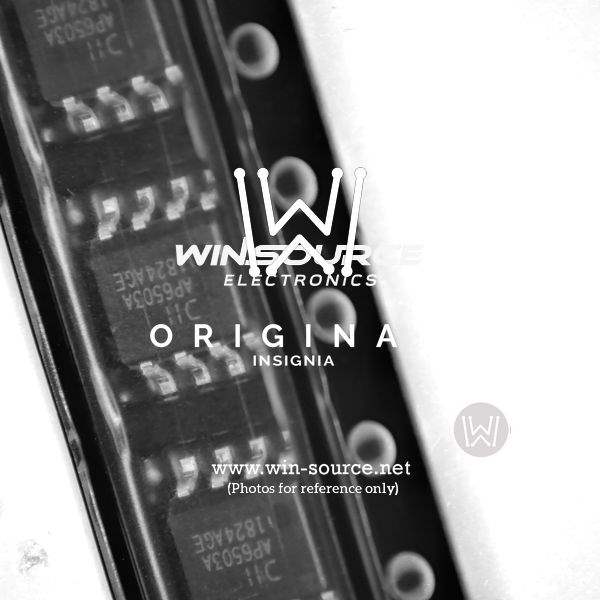

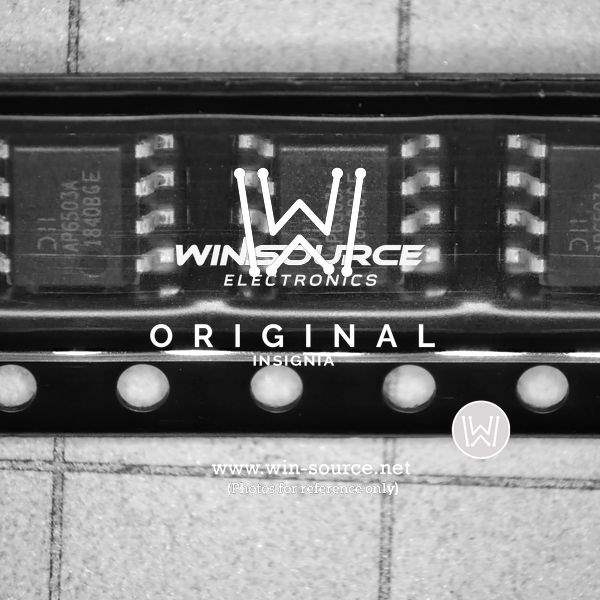

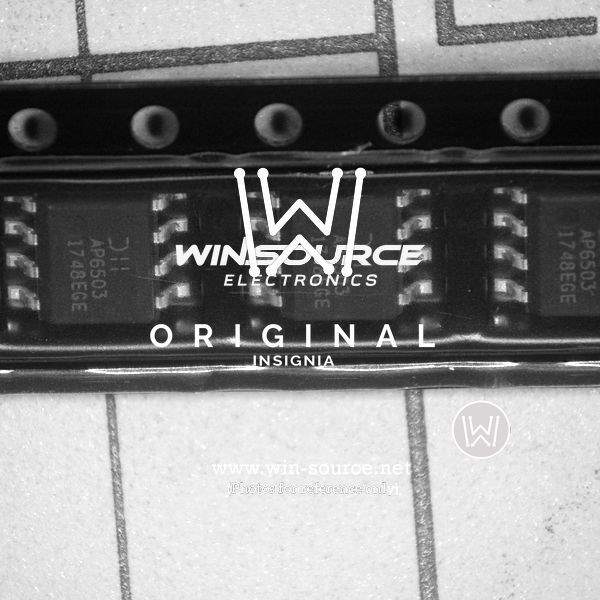

With its advanced features and compact SO-8EP package, the AP6503ASP-13 offers an efficient solution for stepping down high voltages to lower levels, while delivering a continuous output current up to 3A. The device operates over a wide input voltage range from 4.5V to 18V, making it versatile for various power supply scenarios.

Key Features:

• High Efficiency: The AP6503ASP-13 boasts an efficiency rate that can reach up to 95%, ensuring minimal power loss during the conversion process and making it suitable for energy-sensitive applications.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to the input voltage, providing flexibility for different voltage requirements.
• Frequency Synchronization: It supports external clock synchronization, which allows for reduced electromagnetic interference (EMI) and the ability to align switching frequencies in multi-rail power systems.
• Thermal Protection: The integrated thermal shutdown function safeguards the device against overheating, enhancing its reliability and lifespan.
• Current Mode Control: This feature provides fast transient response and simplifies loop stabilization, ensuring consistent performance under varying load conditions.

The AP6503ASP-13 also includes built-in under-voltage lockout (UVLO), over-current protection (OCP), and over-voltage protection (OVP), which contribute to the safety and durability of the end application. Its SO-8EP package is designed to optimize heat dissipation, which is critical for maintaining performance in high-power density applications.

Whether you're designing a power supply for set-top boxes, LCD TVs, or telecommunication equipment, the AP6503ASP-13 from Diodes Incorporated offers the perfect blend of efficiency, flexibility, and protection. Its robust feature set ensures that your products can meet the stringent requirements of modern electronic devices.

For detailed specifications and application notes, please refer to the official datasheet provided by Diodes Incorporated.
