The AP7346D-3612FS6-7 is a high-performance, dual-channel, low dropout regulator designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This compact and efficient voltage regulator is specifically engineered to deliver a stable and reliable power supply for a wide variety of applications, making it an ideal choice for portable and battery-powered devices.

Key Features

• Output Voltage: The device provides fixed output voltages of 3.6V and 1.2V, which are essential for powering sensitive electronic components that require precise voltage levels for optimal performance.
• High Accuracy: It offers excellent load and line regulation, ensuring that the output voltage remains consistent even with changes in input voltage or load conditions. This high accuracy is crucial for maintaining the stability and reliability of the entire system.
• Low Dropout: The AP7346D-3612FS6-7 boasts a low dropout performance, meaning it can maintain regulation with a minimal difference between the input and output voltages. This feature is particularly beneficial when working with limited power sources.
• Current Capability: Each output can deliver up to 150mA of continuous current, which is sufficient for a vast range of low-power applications.
• Power-Saving Mode: The device includes a power-saving mode that significantly reduces quiescent current under light load conditions, thereby extending battery life in portable applications.

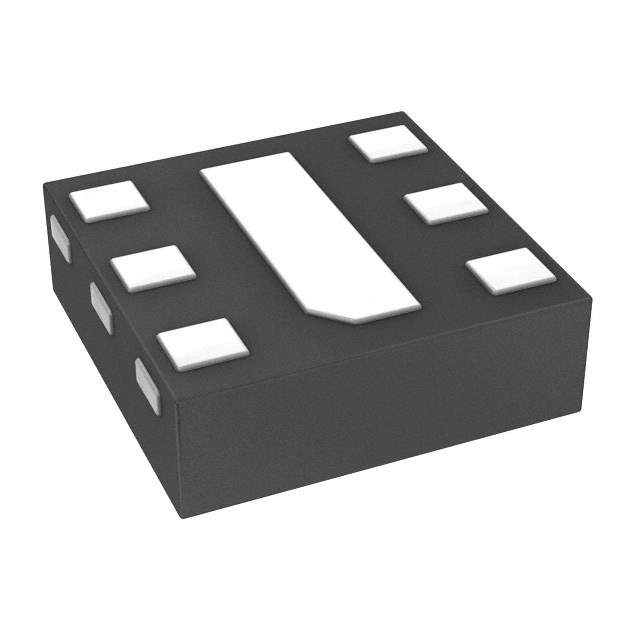

• Package: Housed in a compact X2-DFN1410-6 package, the AP7346D-3612FS6-7 is designed for space-constrained applications, allowing designers to minimize PCB space without compromising on performance.

Applications

The versatile nature of the AP7346D-3612FS6-7 makes it suitable for a broad range of applications, including:

• Mobile phones and PDAs
• Portable media players
• Wireless LAN devices
• GPS receivers
• Digital cameras
• Other battery-powered devices

With its combination of dual-channel output, low dropout, high accuracy, and power efficiency, the AP7346D-3612FS6-7 from Diodes Incorporated stands out as a reliable and versatile component for modern electronic designs.
