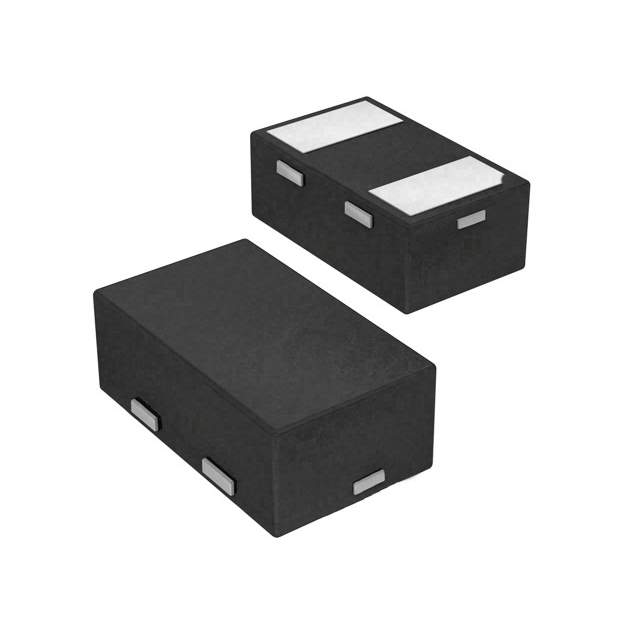

BAS70LP-7B

Part No BAS70LP-7B
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 70V 70MA 2DFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 960mV @ 15mA
Reverse Recovery Time (trr) 1.6ns
Current - Reverse Leakage @ Vr 10μA @ 70V
Capacitance @ Vr, F 1pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package 2-DFN1006
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 010941-BAS70LP-7B
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAS70LP-7B CAD Model

Description

Product Overview: BAS70LP-7B

The BAS70LP-7B is a high-performance Schottky barrier diode designed by Diodes Incorporated, renowned for its compact size and exceptional efficiency. This diode is engineered to meet the demanding requirements of modern electronic circuits, providing fast switching capabilities and low forward voltage drop.

Key Features

  • Low Profile Package: The BAS70LP-7B comes in a low profile, surface-mount SOT-23 package, which is ideal for applications where space is at a premium. Its small footprint ensures that it can be easily integrated into a variety of electronic assemblies.
  • High-Speed Switching: With its Schottky barrier design, this diode offers ultra-fast switching speeds, making it suitable for high-frequency applications and for use in circuits that require rapid switching characteristics.
  • Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which translates into reduced power loss and improved efficiency in operation, particularly important in battery-powered devices.
  • Low Capacitance: The BAS70LP-7B has been optimized to have low capacitance, which is beneficial for high-frequency circuits as it minimizes the distortion and allows the diode to switch off and on with minimal delay.
  • Lead-Free and RoHS Compliant: In alignment with contemporary environmental standards, this product is lead-free and compliant with the Restriction of Hazardous Substances (RoHS) directive, making it suitable for use in environmentally sensitive applications.

Applications

The versatility of the BAS70LP-7B allows it to be used in a wide array of applications, including but not limited to:

  • High-speed switching circuits
  • Power management systems
  • Charge and discharge circuits for battery operation
  • Voltage clamping protection
  • Signal demodulation

With its combination of speed, efficiency, and compact packaging, the BAS70LP-7B from Diodes Incorporated is an excellent choice for designers looking to enhance the performance of their electronic products. Whether it's for portable devices, power supply units, or high-speed logic circuits, this Schottky barrier diode stands out as a reliable and effective component.
