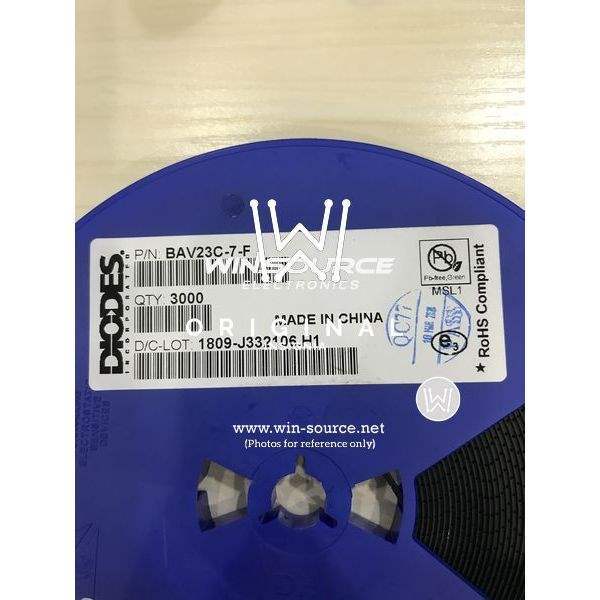

Product Overview: BAV23C-7-F from Diodes Incorporated

The BAV23C-7-F, manufactured by Diodes Incorporated, is a high-voltage, general-purpose switching diode designed for use in a variety of electronic applications. This component is especially suitable for high-speed switching operations due to its quick reverse recovery time. It is commonly utilized in situations where space is at a premium, as it comes in a compact SOT-23 package, making it an ideal choice for high-density circuit designs.

Key Features

• Voltage Rating: The BAV23C-7-F can withstand repetitive reverse voltages up to 200V, making it suitable for high-voltage applications.
• Current Handling: This diode has a continuous forward current rating of 200mA, which allows it to handle moderate levels of current without overheating or failure.
• Speed: With its fast switching speed and a reverse recovery time of no more than 50ns, it is an excellent choice for applications requiring quick transitions between conducting and non-conducting states.
• Low Leakage: It exhibits low leakage current, which enhances its efficiency and reliability in sensitive circuits.

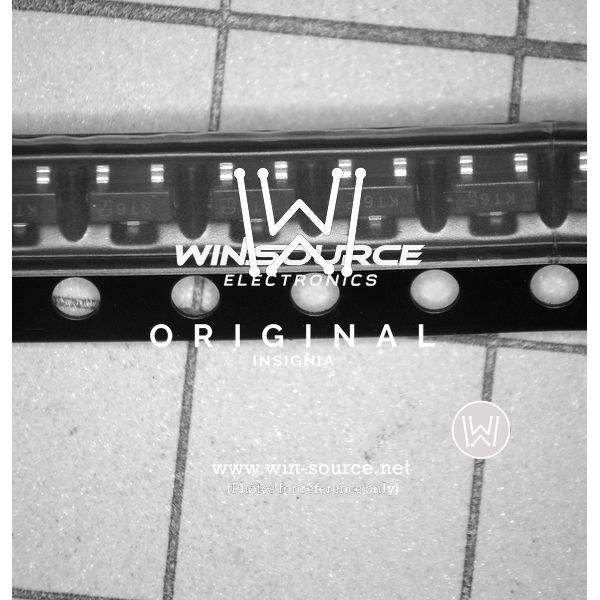

• Package: The SOT-23 package is not only compact but also offers a solid and reliable surface-mount solution for automated PCB assembly processes.
• RoHS Compliant: The BAV23C-7-F meets the requirements of the RoHS directive, making it suitable for use in environmentally-sensitive products.

Applications

The versatility of the BAV23C-7-F allows it to be employed in a wide array of applications including:

• Power management systems
• Switching power supplies
• High-speed logic circuits
• Converter circuits
• High-frequency inverters

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the BAV23C-7-F is no exception. It is produced with stringent quality control processes to ensure performance and reliability. With its robust design and manufacturing excellence, this diode is a dependable component for any electronic project or commercial product.
