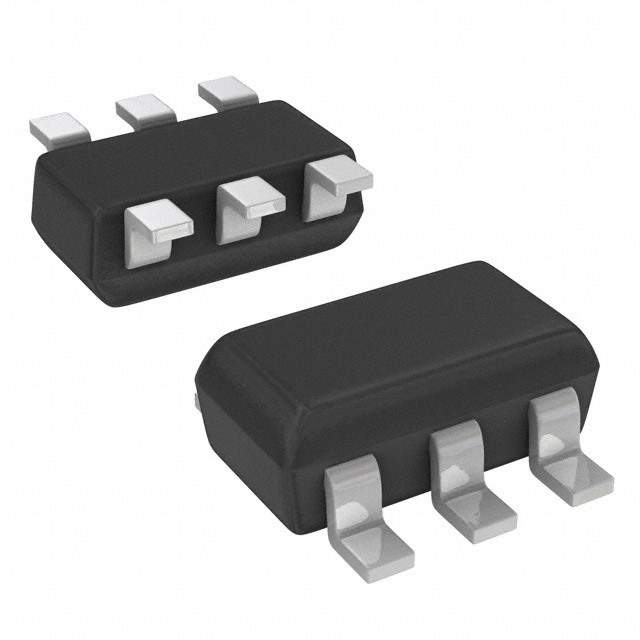

The DCX143TK-7-F is a cutting-edge electronic component manufactured by Diodes Incorporated, a leading company in the semiconductor market. This product is part of the company's extensive range of diode, transistor, and voltage protection devices, designed to meet the demands of modern electronic applications.

Key Features

• Device Type: Pre-biased Bipolar Transistor (BJT)
• Configuration: Dual NPN
• Package: SOT-523, which offers a small footprint and is ideal for space-constrained applications.
• Mounting Type: Surface Mount, suitable for automated PCB assembly processes.
• Transistor Polarity: NPN, making it suitable for amplification and switching applications.
• Collector-Emitter Voltage (Vceo): 50V, which provides a good margin for voltage spikes and surges.
• Collector Current (Ic): 100mA, capable of driving small loads directly.
• Power Dissipation (Pd): 150mW, ensuring the device operates efficiently without overheating.
• DC Current Gain (hFE): Specified to ensure consistent performance.
• RoHS Compliant: Yes, meeting environmental standards and regulations.

Applications

The DCX143TK-7-F is a versatile component that can be used in a variety of applications. Its dual NPN transistor configuration makes it suitable for functions such as signal processing, power management, and voltage regulation. It is commonly found in consumer electronics, automotive circuits, and telecommunication systems. Additionally, its small package size makes it an excellent choice for portable devices where space is at a premium.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability. The DCX143TK-7-F is manufactured under strict quality control standards, ensuring that each component meets the company's high standards for performance and durability. This product is designed to withstand the rigors of everyday use, making it a reliable choice for both commercial and industrial applications.
