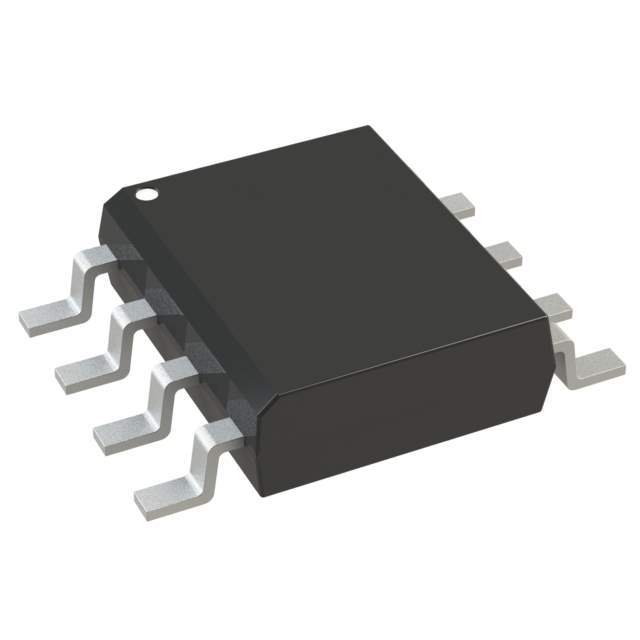

Same model may have multiple batches, images only for reference.
DMGD7N45SSD-13 Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMGD7N45SSD-13

Part No DMGD7N45SSD-13
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 450V 0.5A 8SO
Datasheet
DMGD7N45SSD-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308422-DMGD7N45SSD-13
Category Discrete Semiconductor Products >Transistors >FETs, MOSFETs FET, MOSFET Arrays
Manufacturer Diodes Incorporated
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 450V
Current - Continuous Drain (Id) @ 25°C 500mA (Ta)
Rds On (Max) @ Id, Vgs 4Ohm @ 400mA, 10V
Vgs(th) (Max) @ Id 4.5V @ 1mA
Ultra Librarian 3D Model Ultra Librarian DMGD7N45SSD-13 CAD Model

Description

This new generation complementary MOSFET features low onresistance and fast switching, making it ideal for high efficiency power management applications.
