DMN3016LDN-7 MOSFET by Diodes Incorporated

The DMN3016LDN-7 is a high-performance, N-Channel enhancement mode Field Effect Transistor (FET) designed and manufactured by Diodes Incorporated. This MOSFET is part of their extensive range of power management solutions, catering to the needs of modern electronic devices that demand efficient power regulation and switching capabilities.

Constructed with advanced trench technology, the DMN3016LDN-7 boasts excellent RDS(on) characteristics, ensuring minimal on-state resistance which translates to lower power losses during operation. This makes the device particularly suitable for high-efficiency power management tasks within a wide array of applications, including but not limited to, power supplies, DC-DC converters, and load switches.

The DMN3016LDN-7 operates at a continuous drain current of 23A, with a 30V drain-source voltage (Vds), which allows for robust performance in various circuit configurations. Its threshold voltage (Vgs th) is specified at a standard level, ensuring compatibility with common drive voltages and ease of integration into existing designs.

Furthermore, the DMN3016LDN-7 features fast switching speeds, which is a critical attribute for applications that require rapid state changes, such as motor controls and power regulators. Its low gate charge (Qg) contributes to its swift switching performance, thus reducing switching losses and improving overall system efficiency.

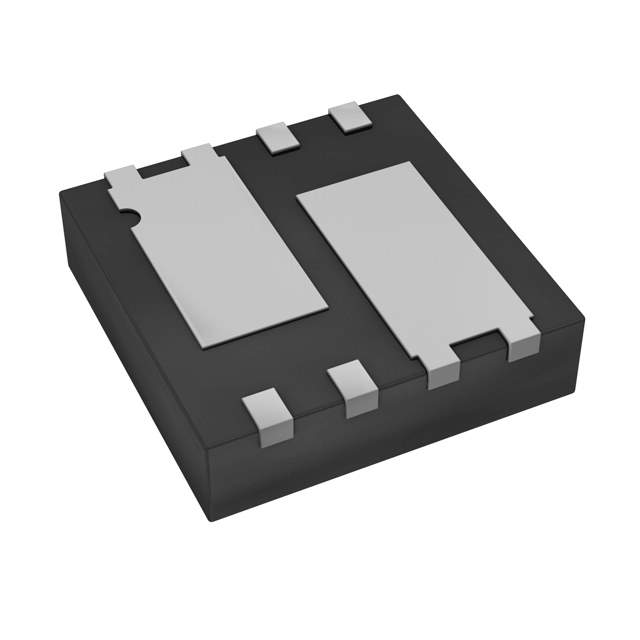

For enhanced thermal management, the DMN3016LDN-7 is housed in a small surface-mount package, the DFN2020-6, which offers excellent thermal resistance. This packaging not only facilitates better heat dissipation but also allows for a more compact design footprint, making it an ideal choice for space-constrained applications.

Diodes Incorporated has also taken measures to ensure the DMN3016LDN-7 meets the rigorous reliability standards required for modern electronics. It is RoHS compliant, lead-free, and halogen-free, reflecting the company's commitment to environmental sustainability and product safety.

In summary, the DMN3016LDN-7 from Diodes Incorporated is a versatile and efficient solution for a multitude of power-related applications. Its combination of low on-resistance, fast switching, and compact packaging makes it a top contender for designers looking to enhance the performance and reliability of their power management systems.
