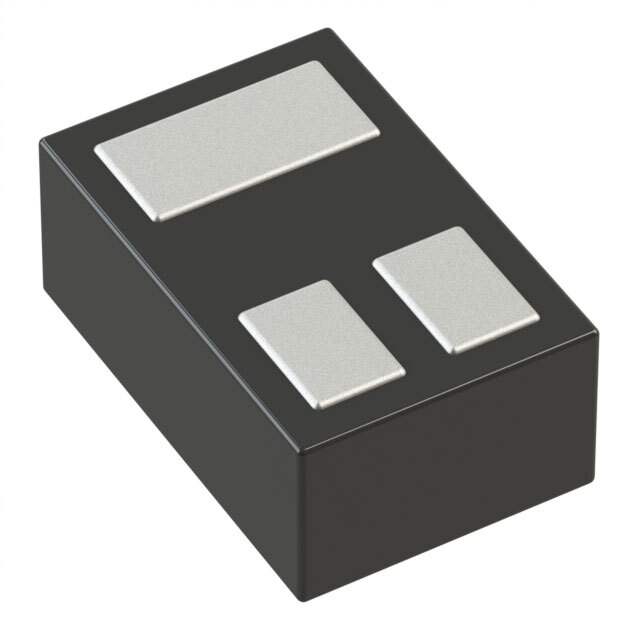

DMP21D5UFB4-7B

Part No DMP21D5UFB4-7B
Manufacturer Diodes Incorporated
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 700MA 3DFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 500nC @ 4.5V
Max Input Capacitance 46.1pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 460mW (Ta)
Maximum Rds On at Id,Vgs 970 mOhm @ 100mA, 5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package X2-DFN1006-3
Dimension 3-XFDFN
Win Source Part Number 101952-DMP21D5UFB4-7B
Family Name DMP21D5UFB4
Introduction Date March 07, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DMP21D5UFB4-7B CAD Model

Description

DMP21D5UFB4-7B from Diodes Incorporated is listed in the Transistors - FETs, MOSFETs - RF category and is intended for designs that need controlled RF or high-frequency switching behavior in compact electronic systems. Engineers may evaluate devices in this class for signal path control, front-end stages, wireless subsystems, and other space-sensitive circuit designs where MOSFET performance and package efficiency matter. As a Diodes Incorporated component, it may be considered for commercial, industrial, and communications-oriented applications depending on the official datasheet and qualification details. The current lifecycle status for DMP21D5UFB4-7B is information not available in the provided data, so design teams should confirm active production status and long-term availability directly with the manufacturer or authorized distributors before committing to new builds. RoHS compliance information is also not available in the provided input. Engineers and procurement teams should verify the latest environmental compliance declarations, material content data, and datasheet documentation before release to production.
