Overview of DMP3011SFVWQ-13

The DMP3011SFVWQ-13 is a high-performance P-Channel MOSFET from the renowned manufacturer Diodes Incorporated. This electronic component is designed to provide efficient power management and switching capabilities in a wide range of applications. With its compact form factor and robust feature set, the DMP3011SFVWQ-13 is an ideal choice for designers looking to optimize their power circuitry in space-constrained environments.

Key Features

• Device Type: P-Channel MOSFET

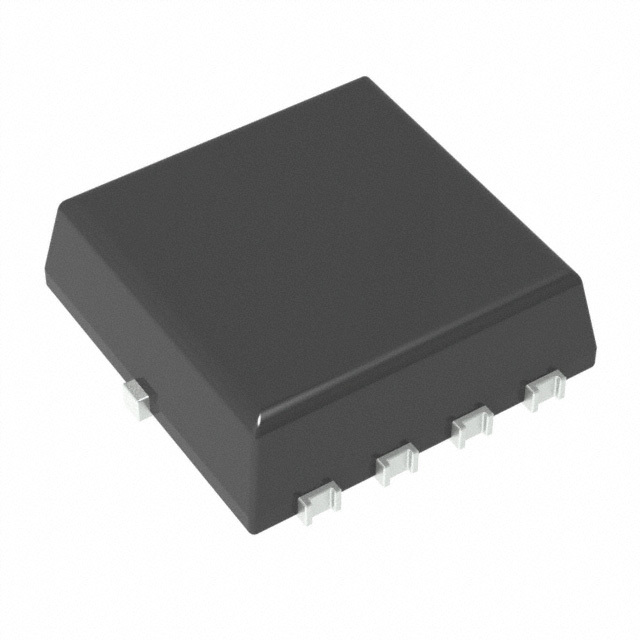

• Package: The DMP3011SFVWQ-13 comes in a small 6-pin PowerDI3333-8 package, which is designed for surface-mount technology (SMT) and offers excellent thermal performance.
• Drain-Source Voltage (V<sub>DS): It supports a drain-source voltage of up to -30V, providing a good range for various applications.
• Continuous Drain Current (I<sub>D): The MOSFET is capable of a continuous drain current of -12A, ensuring it can handle significant power levels.
• On-Resistance (R<sub>DS(on)): With a low on-resistance of 8.4mΩ at V<sub>GS of -10V, it offers high efficiency and reduces power losses during operation.
• Gate-Source Voltage (V<sub>GS): The maximum gate-source voltage is ±20V, which provides a wide margin for gate drive design.

Applications

The versatility of the DMP3011SFVWQ-13 allows it to be used in a variety of applications, including:

• Power management systems
• Load switches
• Battery management
• DC-DC converters
• Motor drives

Advantages

Utilizing the DMP3011SFVWQ-13 offers numerous advantages for circuit designers:

• Its low on-resistance minimizes conduction losses, improving overall energy efficiency.
• The compact PowerDI3333-8 package saves valuable board space without compromising thermal performance.
• High current capability allows for use in high-power applications.
• Robust against repetitive avalanche events for a reliable performance in tough conditions.

Overall, the DMP3011SFVWQ-13 from Diodes Incorporated represents a blend of performance, efficiency, and reliability, making it a top choice for modern electronic designs.
