Product Overview: FZT692BQTA - Diodes Incorporated

The FZT692BQTA from Diodes Incorporated is a high-performance bipolar transistor designed for use in a wide range of electronic applications. This PNP transistor is a member of the company's extensive bipolar transistors portfolio, known for its reliability and efficiency.

Key Features

• Transistor Polarity: PNP - The FZT692BQTA is a PNP transistor, which means it is turned on when a small current flows through the base in a direction opposite to the electron flow.
• Collector-Emitter Voltage (VCEO): This transistor can withstand voltages up to 20V between the collector and emitter terminals when the base terminal is open.
• Collector Current (IC): It supports a collector current of up to 3A, making it suitable for moderate power applications.
• DC Current Gain (hFE): It boasts a high DC current gain, typically around 100, providing a good level of amplification of the input signal.
• Power Dissipation (Pd): The FZT692BQTA has a power dissipation rating of 2W, allowing it to handle a reasonable amount of power without overheating.
• Operating Temperature Range: It can operate within a temperature range of -55°C to 150°C, ensuring stability and performance under varying environmental conditions.

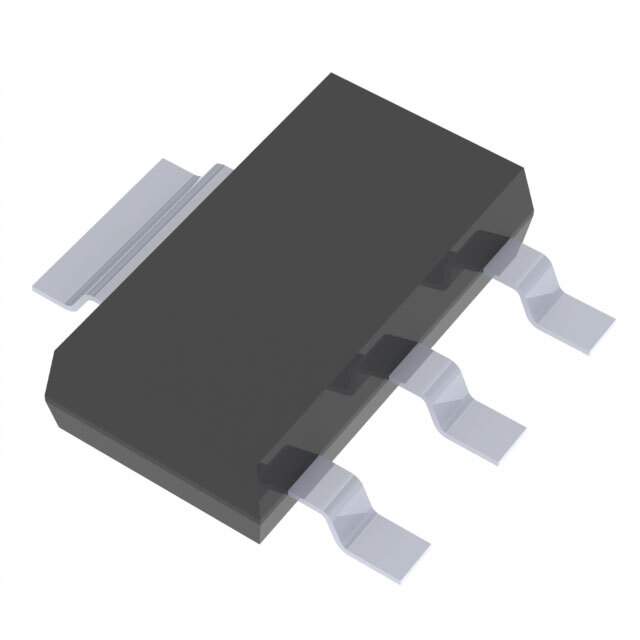

• Package / Case: The device is offered in an SOT-223 package, which is compact and suitable for surface-mount technology (SMT).

Applications

The FZT692BQTA is versatile and can be used in various applications, including:

• Power management circuits
• Switching regulators
• Motor control drivers
• Audio amplifiers
• Signal amplification

Quality and Reliability

Diodes Incorporated ensures that all their products, including the FZT692BQTA, meet the highest quality and reliability standards. The device is RoHS compliant, reflecting the company's commitment to environmental sustainability. With its robust design and proven performance, the FZT692BQTA is an excellent choice for designers and engineers looking for a dependable PNP transistor for their electronic projects.
