Diodes Incorporated PD3S220L-7 - Low VF Schottky Rectifier

The PD3S220L-7 is a high-performance Schottky rectifier from Diodes Incorporated, designed to meet the needs of modern compact electronic applications. This component is known for its low forward voltage drop (VF), making it an efficient choice for applications where power conservation is critical. It is especially suitable for high-frequency rectification and free-wheeling application in switching power supplies and other power switching applications.

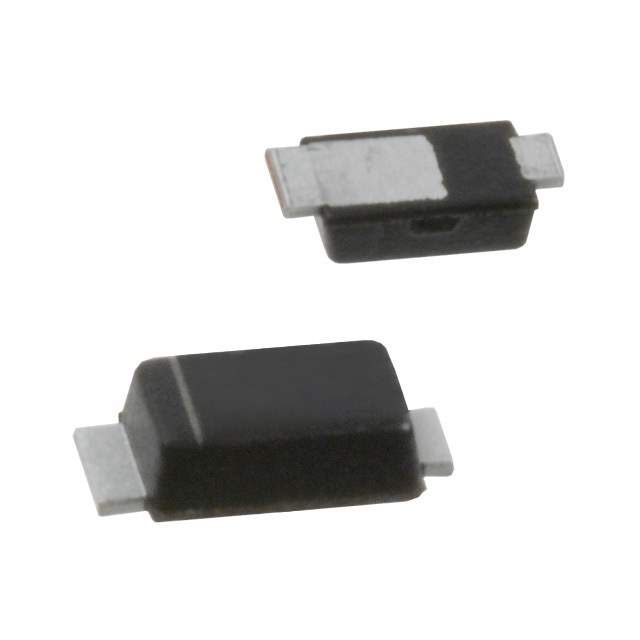

With its small form factor, the PD3S220L-7 comes in a space-saving PowerDI™ 123 package, which is ideal for applications where board space is at a premium. This packaging technology also ensures enhanced thermal performance, reliability, and overall robustness of the device. The rectifier is capable of handling a high average rectified forward current of up to 2.0A, making it suitable for a range of power management tasks.

The PD3S220L-7 boasts a low forward voltage drop, typically around 0.37V at 1A, which contributes to its high efficiency. This characteristic is particularly beneficial in reducing power loss and improving the overall efficiency of the system in which it is used. Additionally, the device has a peak repetitive reverse voltage of 20V, which provides a good margin for safety in most low voltage applications.

Another key feature of the PD3S220L-7 is its fast switching capability, which allows for efficient operation at high frequencies. This makes the device an excellent choice for use in switch-mode power supplies, DC-DC converters, and other power conversion applications that require fast switching speeds.

For protection purposes, the PD3S220L-7 comes with a guard ring for stress protection, ensuring that the device remains stable and reliable even under adverse conditions. This feature enhances the long-term reliability of the rectifier, making it a dependable component for critical applications.

In summary, Diodes Incorporated's PD3S220L-7 is a versatile and efficient Schottky rectifier that offers a blend of low forward voltage, high current capability, and fast switching speeds, all packed in a compact, thermally efficient PowerDI™ 123 package. It is an excellent choice for designers looking to improve power efficiency and save board space in their next power management project.
